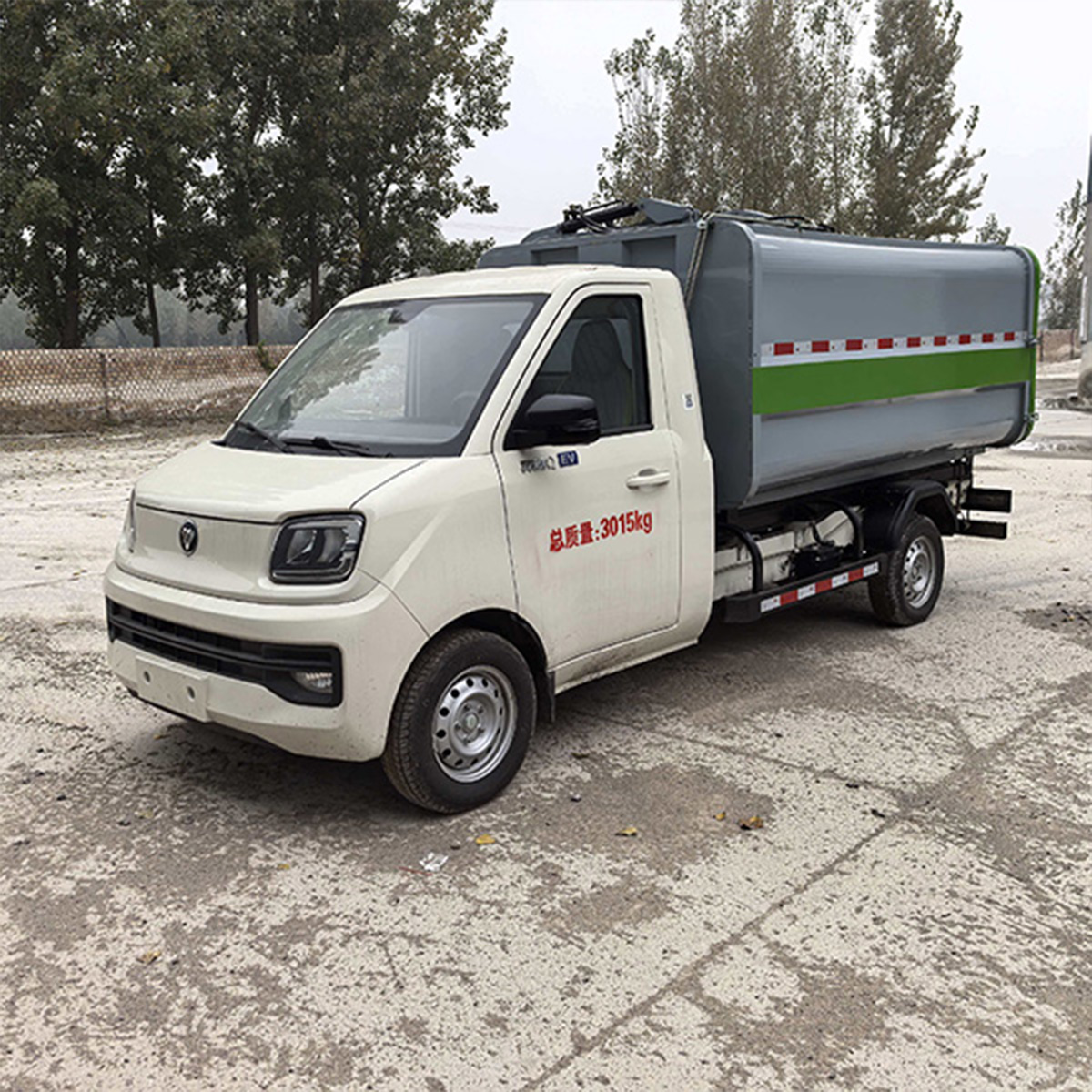

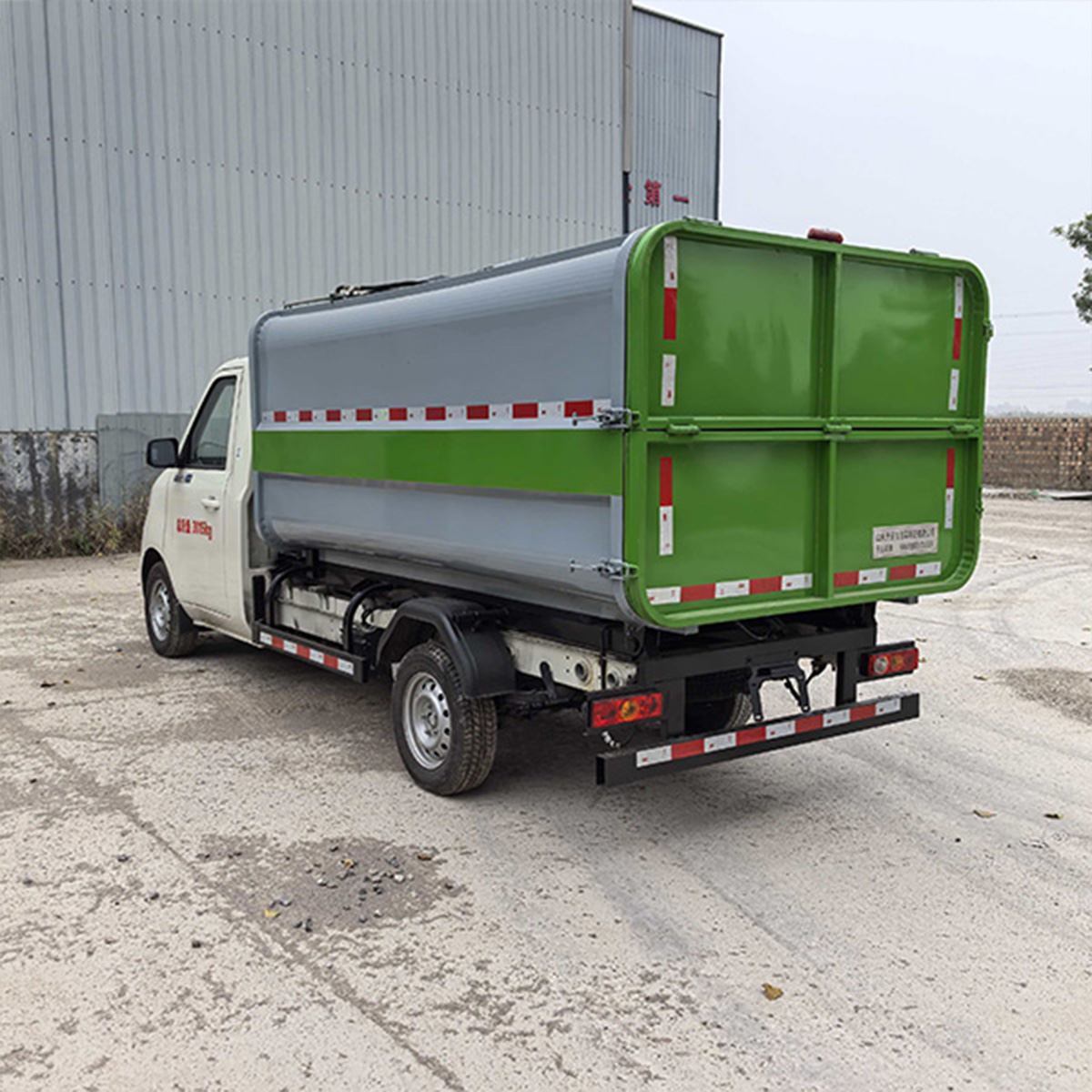

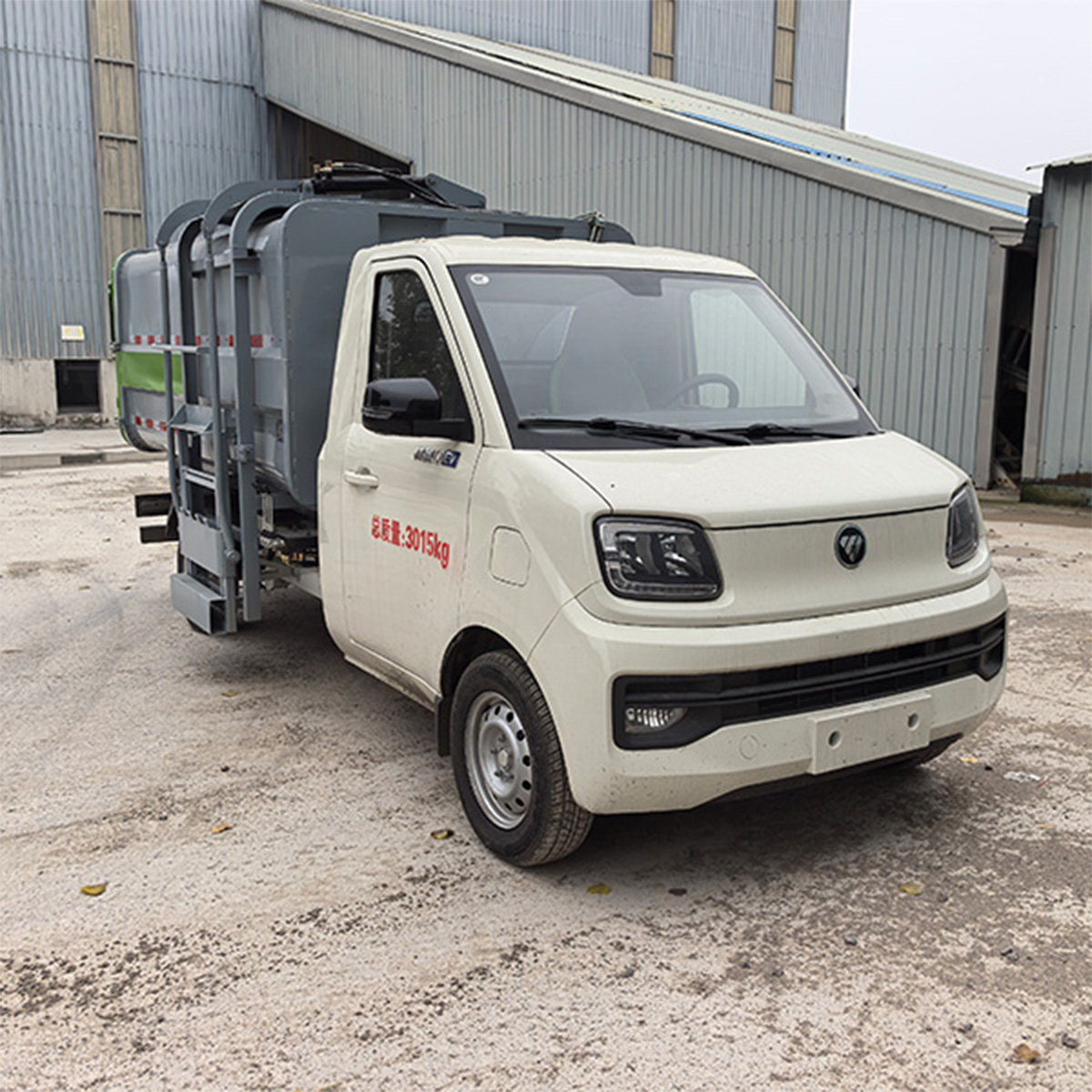

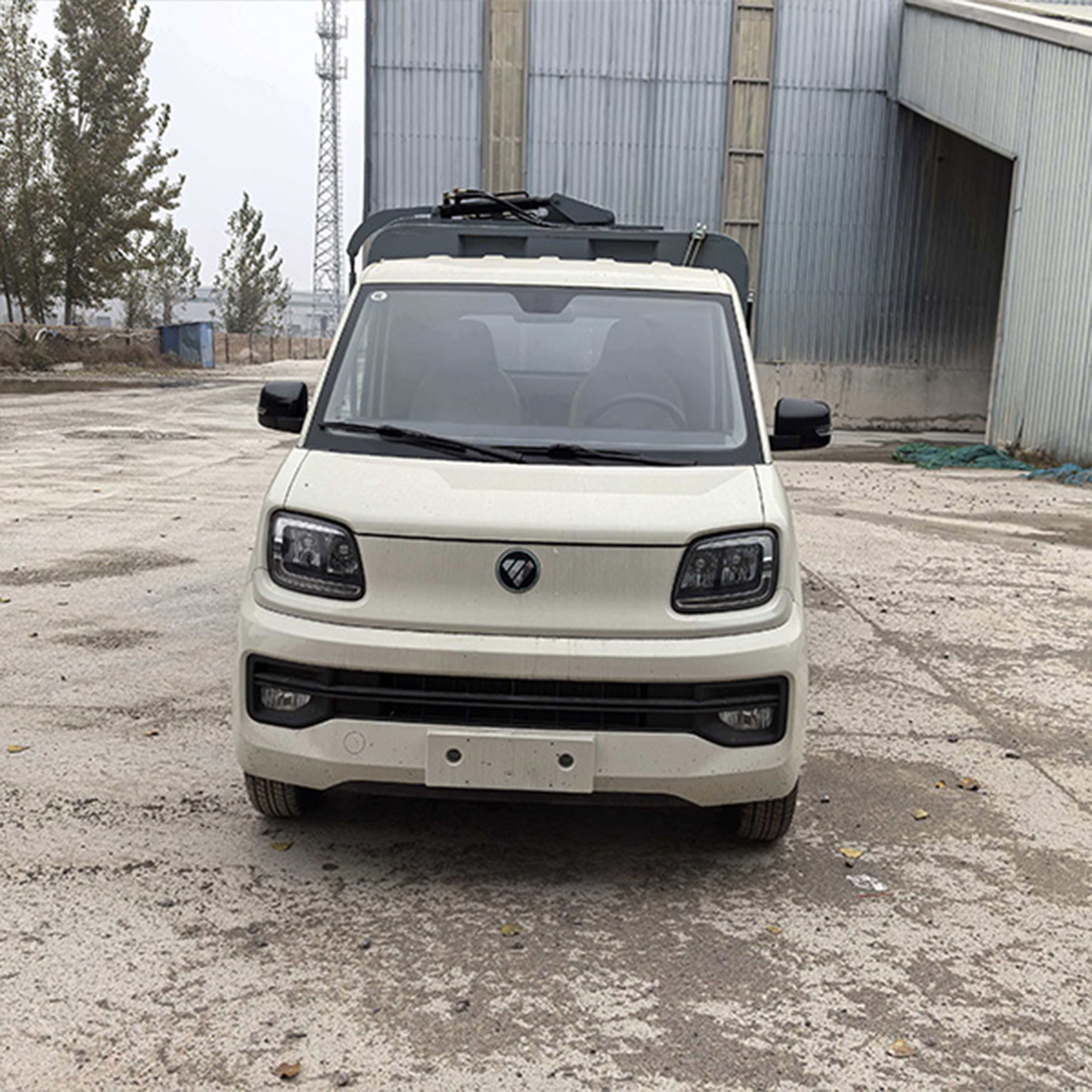

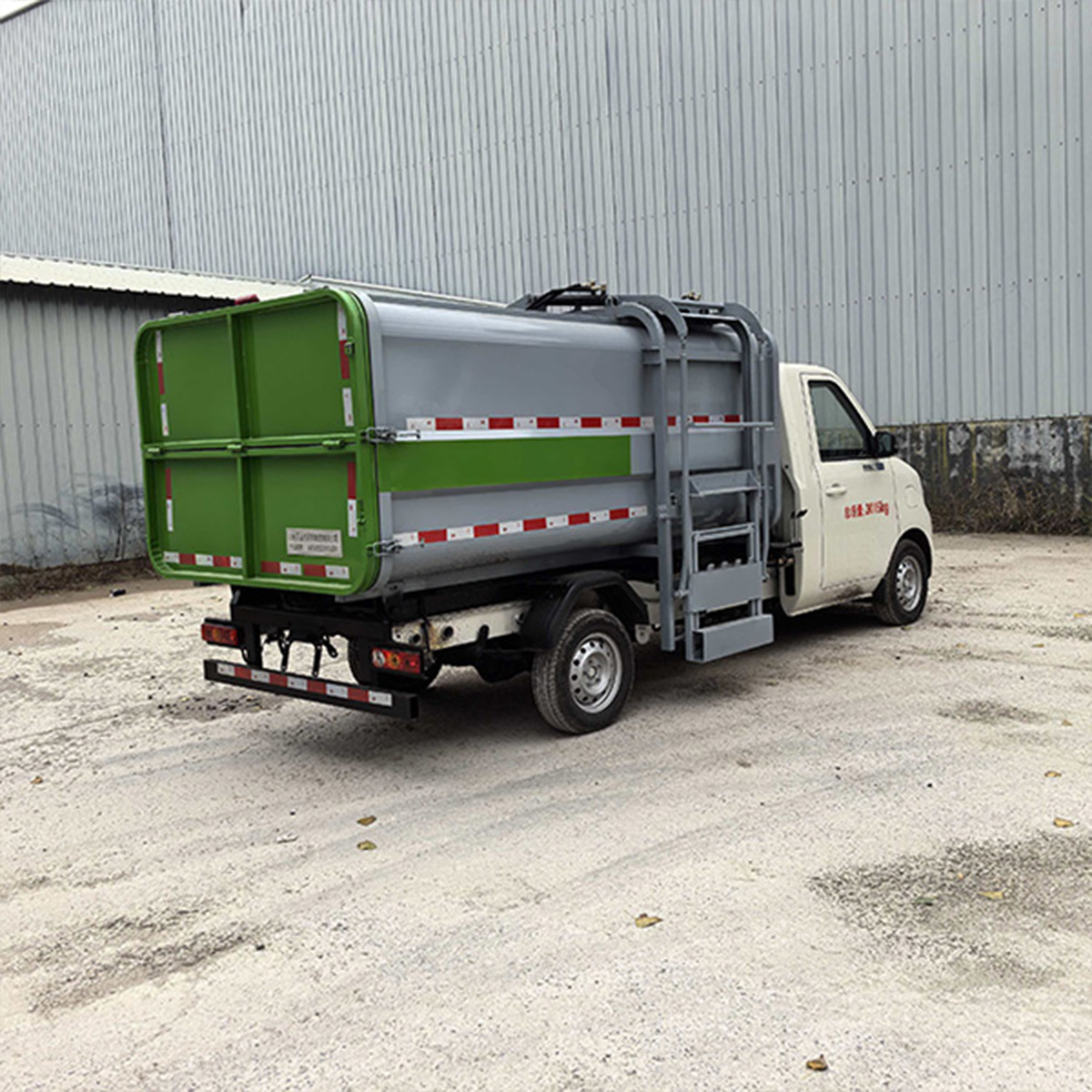

The Foton Xiangqian Q 6m³ pure electric self-loading garbage truck is a compact, cost-effective solution for urban and community sanitation. Equipped with a 75kW high-efficiency motor and a 41.86kWh CATL LFP battery, it offers a 200km+ range with zero emissions, making it an eco-friendly waste management choice. Its 6m³ corrosion-resistant bin, durable Q235 carbon steel frame, and quiet hydraulic operation ensure reliable performance for daily refuse collection and transfer.
Core Advantages
Green Plate & Road-Legal: Equipped with a green license plate, no driving restrictions, suitable for urban narrow roads and community operations.
Long Warranty & Safety: 96-month/400,000km CATL battery + 60-month/200,000km motor warranty, ensuring long service life.
Efficient & Durable Bin: 6m³ capacity with 201 stainless steel bottom plate, anti-corrosion, galvanized frame for extended life.
Quiet & Stable: Patented silent hydraulic system, smooth operation, and long service life (2-year warranty).
Low Operating Cost: Pure electric drive, no fuel cost, low maintenance, and energy-saving design.
Application Scenarios
This garbage truck is widely used in:
Urban Sanitation: Municipal waste collection, street cleaning, and small-scale refuse transfer.
Community & Property: Residential area waste removal, property management for small to medium communities.
Commercial & Office: Shopping mall, office park, and industrial park sanitation.
Environmental Zones: Eco-friendly waste collection for sensitive environmental areas.
Optional Configuration & Design
Hydraulic Compactor: Optional hydraulic compactor design increases loading efficiency by 30% and reduces transportation frequency.
Durable Material: The bin frame uses high-quality Q235 carbon steel and galvanized square tubes, providing excellent corrosion resistance and durability.
Quiet Hydraulic System: Patented silent fluid power system, more durable, ensuring low noise operation for residential areas.
Why Choose This Foton Garbage Truck?
Foton Brand Reliability: Foton is a leading commercial vehicle manufacturer with mature technology and a wide service network.
High Efficiency & Fast Operation: Self-loading design + optional compactor, improving work efficiency and reducing labor costs.
Long Battery Life: CATL LFP battery with 96-month warranty, ensuring safe and stable operation for many years.
Eco-Friendly & Cost Effective: Zero emission and low operating cost, perfect for modern urban sanitation projects.
Customizable Options: Adjustable bin configuration and optional compactor to meet diverse waste management needs.
上牌资质
可上正规绿牌
整车尺寸
5300×1980×2200 mm
整车配置
3300 轴距
总质量
3015 kg
整备质量
1840 kg
额定载质量
1045 kg
最大承载
2000 Kg
电机功率
75 千瓦（峰值）
最高车速
90 km/h
轮胎
175/75R14
电池类型
磷酸铁锂电池
动力电池容量
41.86 kWh
电池品牌
宁德时代（96 个月 / 40 万公里质保）
续航里程
标定≥200 公里
电机品牌
苏州汇川（60 个月 / 20 万公里质保）
动力模式
纯电动
空调系统
冷暖空调
充电电压
支持快慢充
制动系统
油刹 ABS
前桥
麦弗逊悬架
箱体容积
6 m³
箱体尺寸
2900×1650×1180 mm
箱体材质
底板 201 不锈钢，边 / 前后板优质 Q235 碳钢
箱体框架
镀锌方管
液压系统
静音液压系统，质保 2 年
可选配置
可选压缩推板
Description
Product Overview
The Foton Xiangqian Q 6m³ pure electric self-loading garbage truck is a compact, cost-effective solution for urban and community sanitation. Equipped with a 75kW high-efficiency motor and a 41.86kWh CATL LFP battery, it offers a 200km+ range with zero emissions, making it an eco-friendly waste management choice. Its 6m³ corrosion-resistant bin, durable Q235 carbon steel frame, and quiet hydraulic operation ensure reliable performance for daily refuse collection and transfer.
Core Advantages
Green Plate & Road-Legal: Equipped with a green license plate, no driving restrictions, suitable for urban narrow roads and community operations.
Long Warranty & Safety: 96-month/400,000km CATL battery + 60-month/200,000km motor warranty, ensuring long service life.
Efficient & Durable Bin: 6m³ capacity with 201 stainless steel bottom plate, anti-corrosion, galvanized frame for extended life.
Quiet & Stable: Patented silent hydraulic system, smooth operation, and long service life (2-year warranty).
Low Operating Cost: Pure electric drive, no fuel cost, low maintenance, and energy-saving design.
Application Scenarios
This garbage truck is widely used in:
Urban Sanitation: Municipal waste collection, street cleaning, and small-scale refuse transfer.
Community & Property: Residential area waste removal, property management for small to medium communities.
Commercial & Office: Shopping mall, office park, and industrial park sanitation.
Environmental Zones: Eco-friendly waste collection for sensitive environmental areas.
Optional Configuration & Design
Hydraulic Compactor: Optional hydraulic compactor design increases loading efficiency by 30% and reduces transportation frequency.
Durable Material: The bin frame uses high-quality Q235 carbon steel and galvanized square tubes, providing excellent corrosion resistance and durability.
Quiet Hydraulic System: Patented silent fluid power system, more durable, ensuring low noise operation for residential areas.
Why Choose This Foton Garbage Truck?
Foton Brand Reliability: Foton is a leading commercial vehicle manufacturer with mature technology and a wide service network.
High Efficiency & Fast Operation: Self-loading design + optional compactor, improving work efficiency and reducing labor costs.
Long Battery Life: CATL LFP battery with 96-month warranty, ensuring safe and stable operation for many years.
Eco-Friendly & Cost Effective: Zero emission and low operating cost, perfect for modern urban sanitation projects.
Customizable Options: Adjustable bin configuration and optional compactor to meet diverse waste management needs.
