7 Core Spiral ABS Trailer Wiring Harness 7 Strands Pure Copper ISO Standard 7 Pin Plug Waterproof Injection Connector For 24V Semi Truck Turn Brake Reverse Marker Light Wholesale
最小起订量: 1件
- Product Name:
- Truck 7 Core Spiral ABS Wire (Semi-trailer 7 Core Spiral Wiring Harness)
- Core Material:
- 7 Strands Thickened Pure Copper Wire, No Overheat Under High Current
- Working Voltage:
- 24V Semi-trailer Truck Full Vehicle Electrical System
- Matching Accessory:
- Universal ISO SAE Standard 7 Core Trailer Socket
- 参考价格:
- USD $10.07
- 最小起订量:
- 1件
产品特点与应用

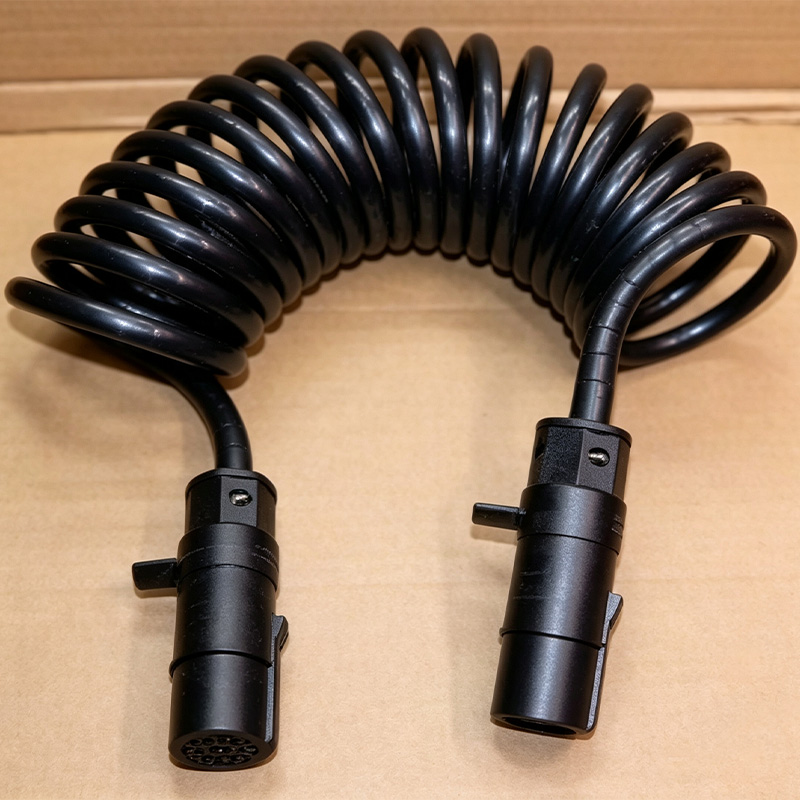

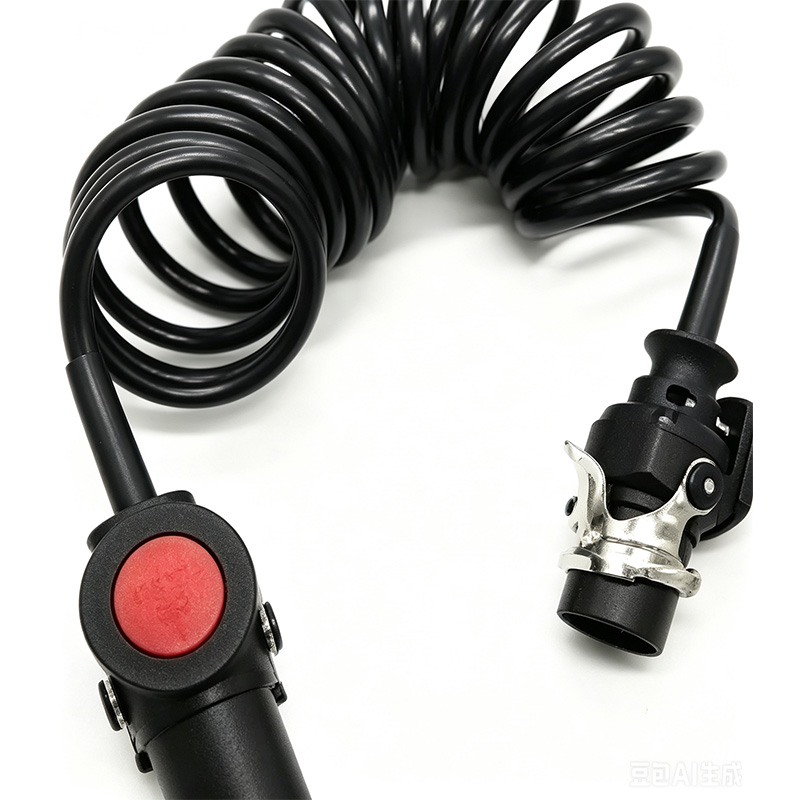

Truck 7-core spiral ABS wire, also known as semi-trailer 7-core spiral wiring harness, adopts 7 strands thickened pure copper inner core, equipped with ISO SAE standard 7-pin male plug. High elastic PVC spiral sheath stretches freely and rebounds automatically, integrated injection molded waterproof sealed connector. 7 color coded wires transmit left turn, rear fog, right turn, brake, marker, reverse and ABS anti-lock power signals respectively. Compatible with 24V tractor heads and all types of semi-trailers, anti-freeze, oil resistant, anti-break under pulling. Usually sold as a set with 7-core socket, full material test and customs documents supported for bulk export.
- 7 strands thickened pure copper core bears high current stably, no light flicker or ABS fault alarm during long-distance transport
- High elastic spiral retractable sheath stretches and rebounds freely during coupling, space-saving storage, anti-break and anti-short circuit under pulling force
- Integrated full sealed injection connector blocks rain and mud completely, avoid short circuit and wire burnout to extend service life
- Anti-aging PVC outer sheath resists low temperature, oil and UV radiation, anti-crack under long-term rain, snow and muddy construction site environment
- ISO international standard 7 pin plug directly matches all 7 core sockets on market, no wiring modification needed for original harness replacement
- Standard 7 color coded wires make circuit fault inspection clear and intuitive, fit grain, box, tipper, container all types of semi-trailers
- Available for set purchase with 7 core socket, official FOB USD quotation & stamped PI provided, higher cost performance for overseas trailer auto parts wholesalers
技术规格
- Product Name
- Truck 7 Core Spiral ABS Wire (Semi-trailer 7 Core Spiral Wiring Harness)
- Core Material
- 7 Strands Thickened Pure Copper Wire, No Overheat Under High Current
- Working Voltage
- 24V Semi-trailer Truck Full Vehicle Electrical System
- Matching Accessory
- Universal ISO SAE Standard 7 Core Trailer Socket
- Outer Sheath
- High Elastic PVC Spiral Tube, Anti-freeze, Oil Resistant & Anti-aging
- Connector Craft
- Integrated Injection Waterproof Sealed Joint, Thickened Brass 7 Pin Plug Anti-oxidation
- Retractable Feature
- Free stretch during coupling & turning, auto rebound for space-saving, anti-break & anti-short circuit
- 7 Pin Circuit Function
- 1 WHT Left Turn; 2 BLK Rear Fog; 3 YEL Right Turn; 4 RED Brake; 5 GRN Marker; 6 BRN Reverse; 7 BLU ABS Power Supply
- Core Performance
- Stable Conductivity, Waterproof Sealing, Durable For Harsh Road, Universal Standard No Rewiring
- Application
- | Transmit Full Vehicle Light & ABS Anti-lock System Power Signals Between Tractor And Semi-trailer | | --- |
交易规格
- 参考价格
- USD $10.07
- 最小起订量
- 1件
