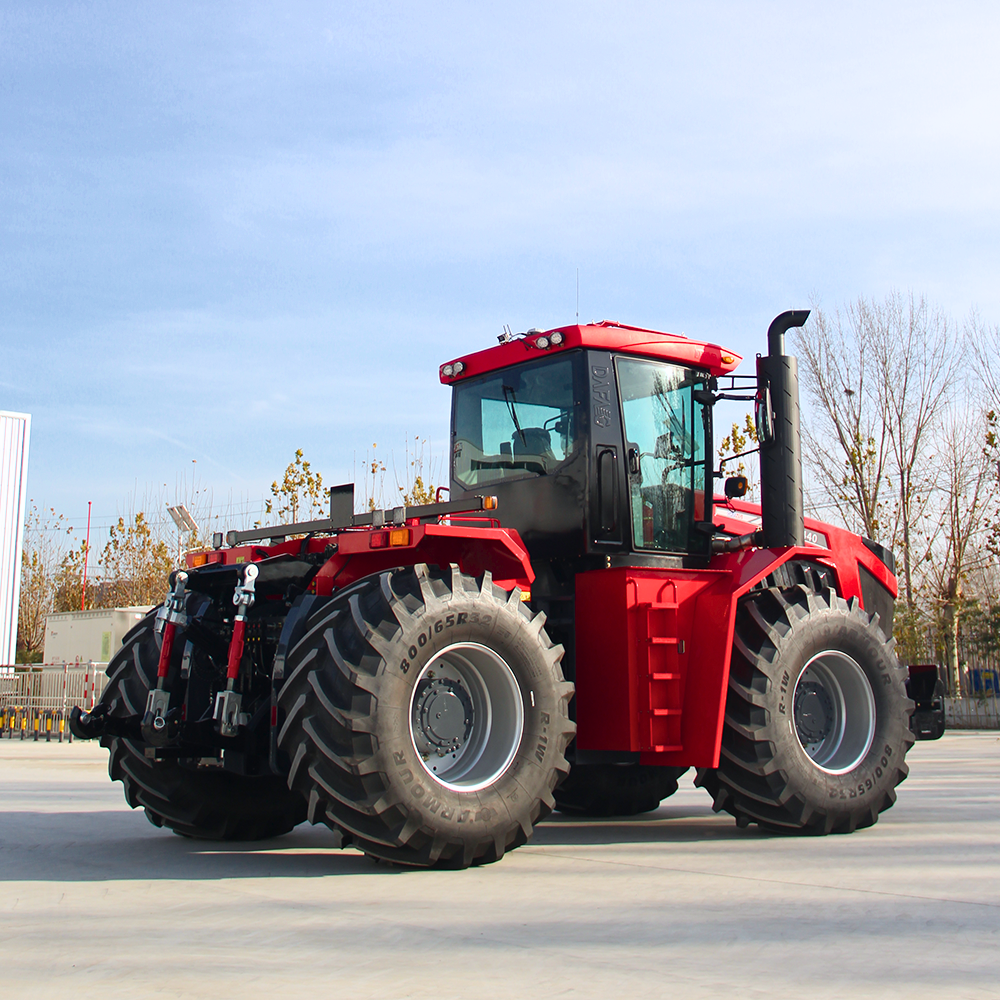

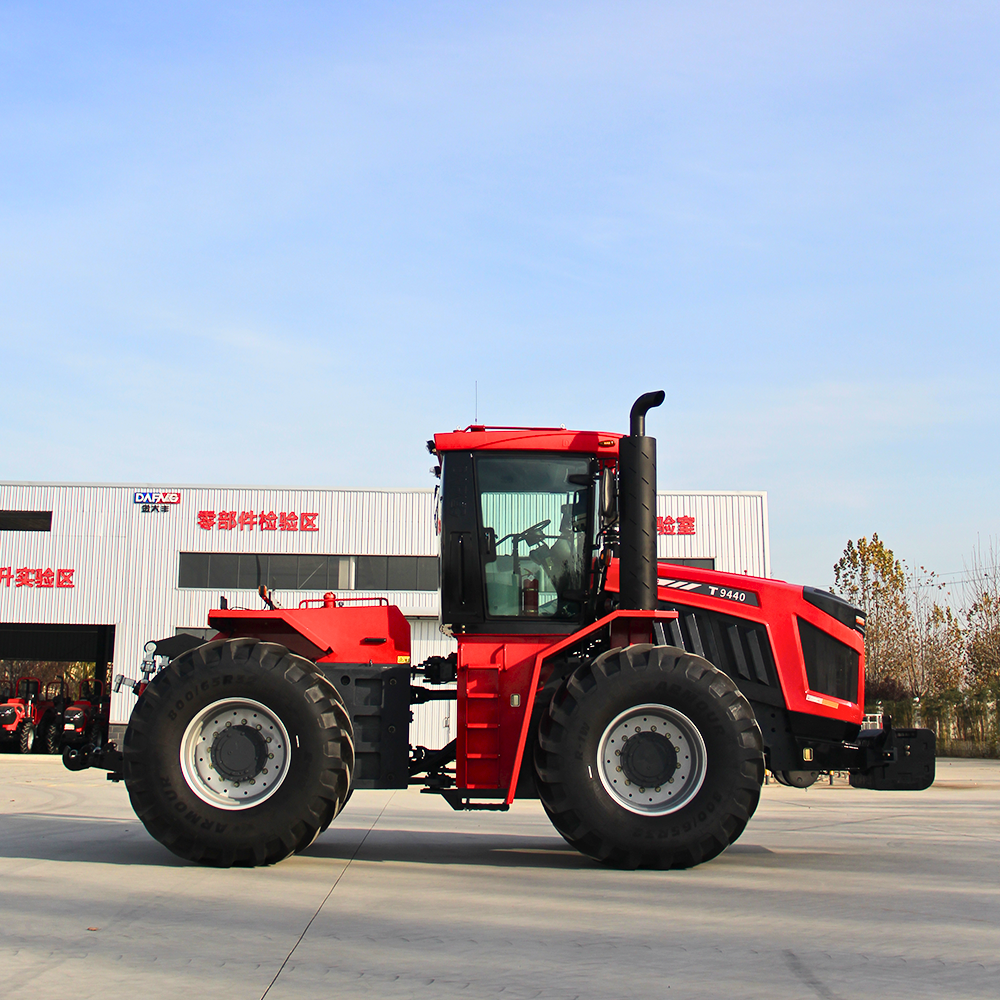

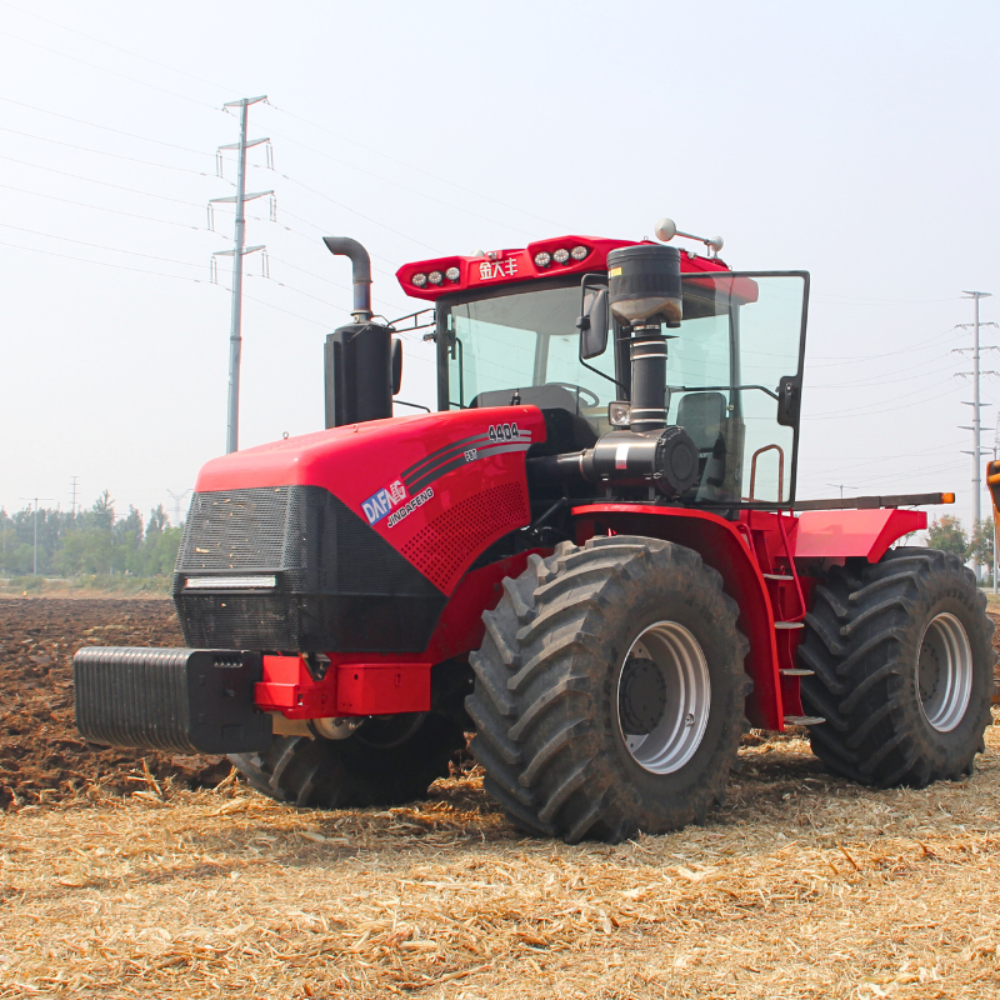

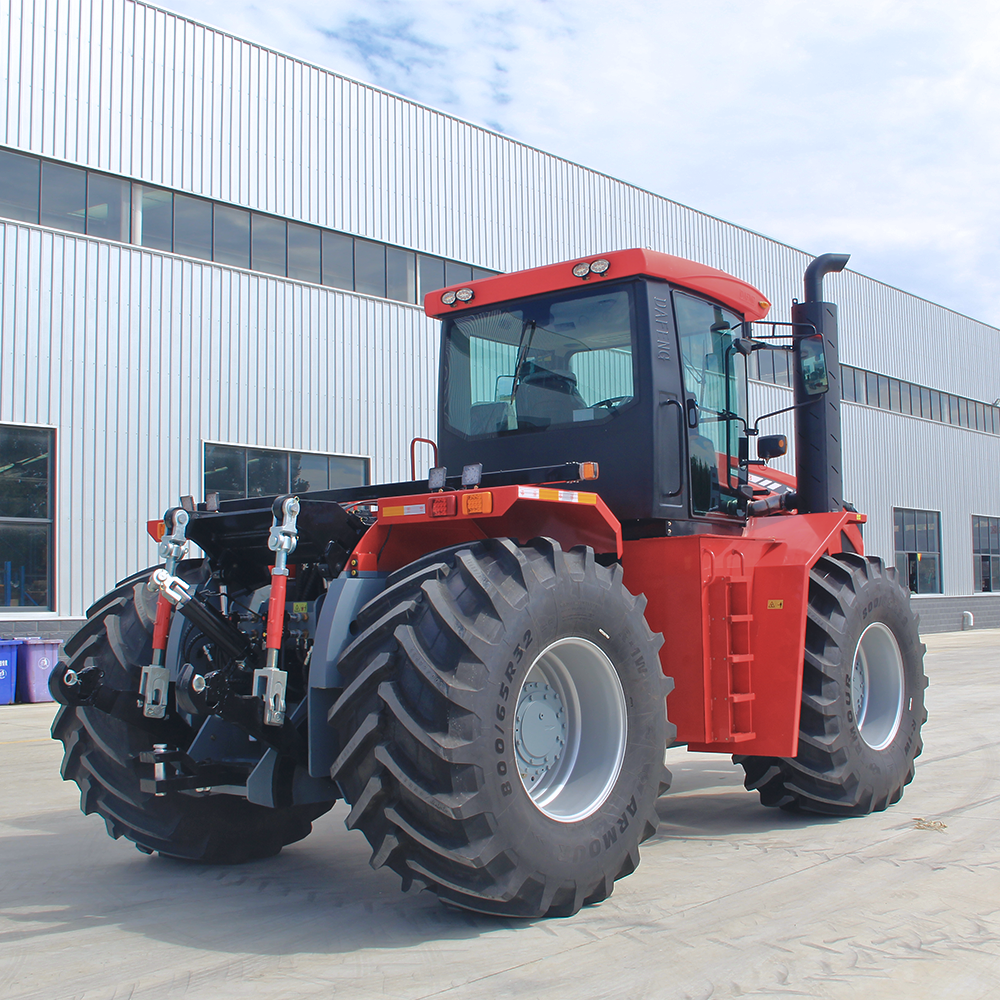

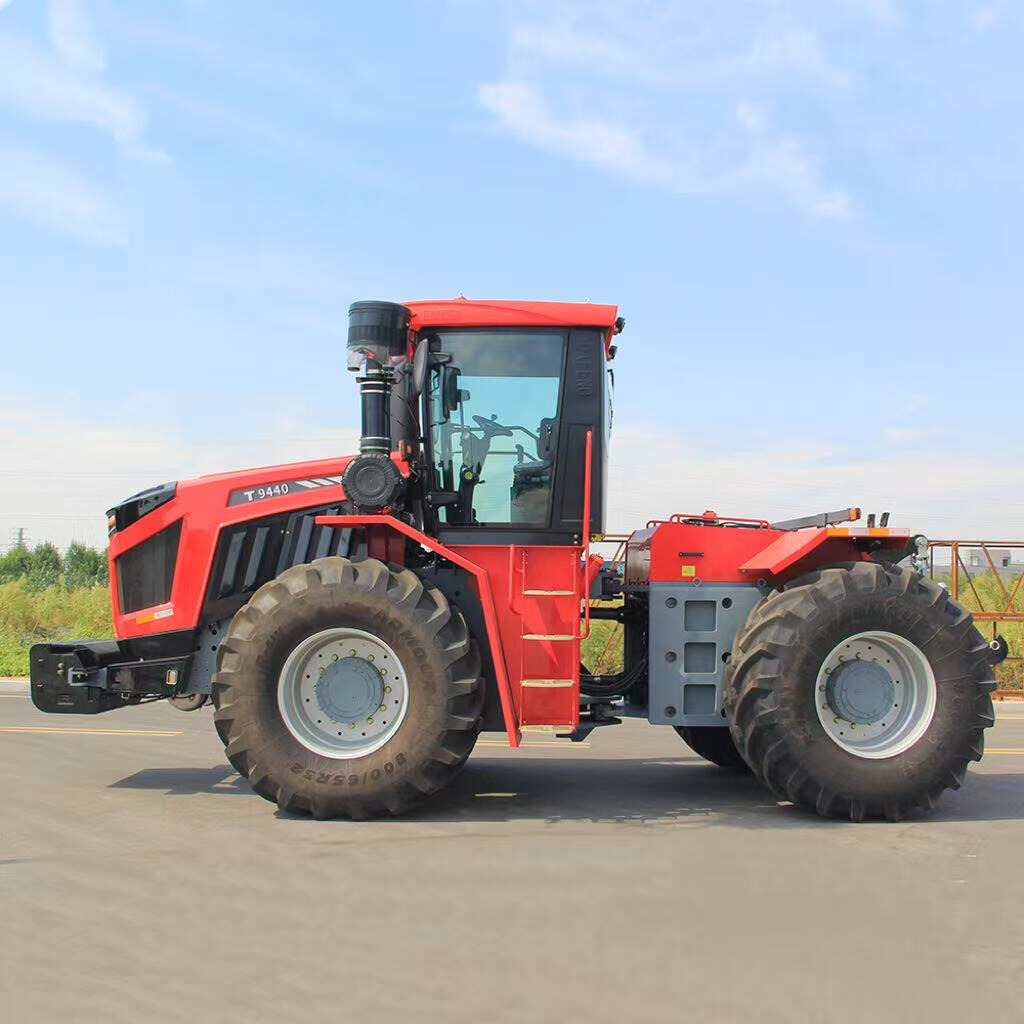

Agricultural machinery durable high-horsepower 440HP agricultural tractor

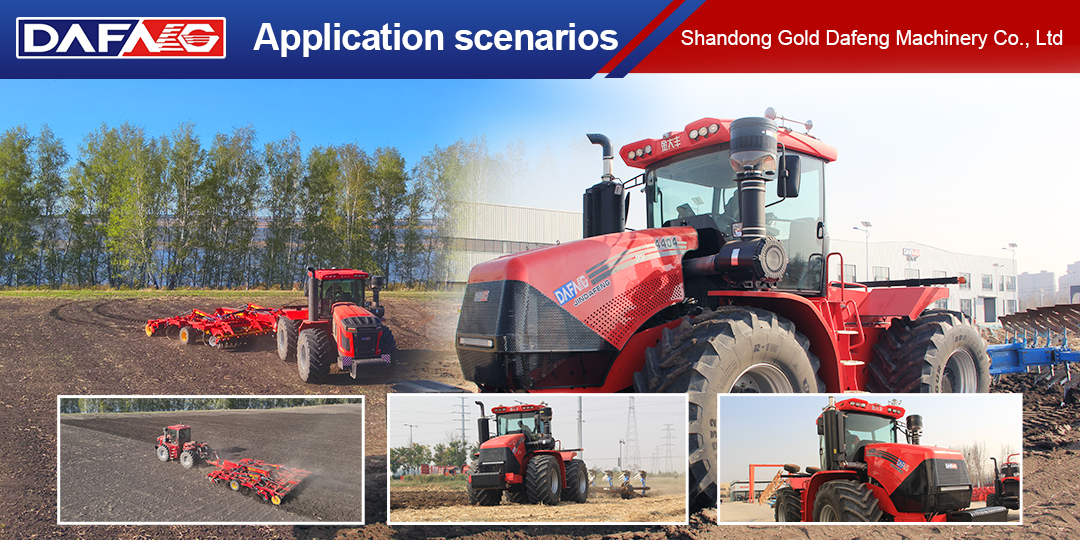

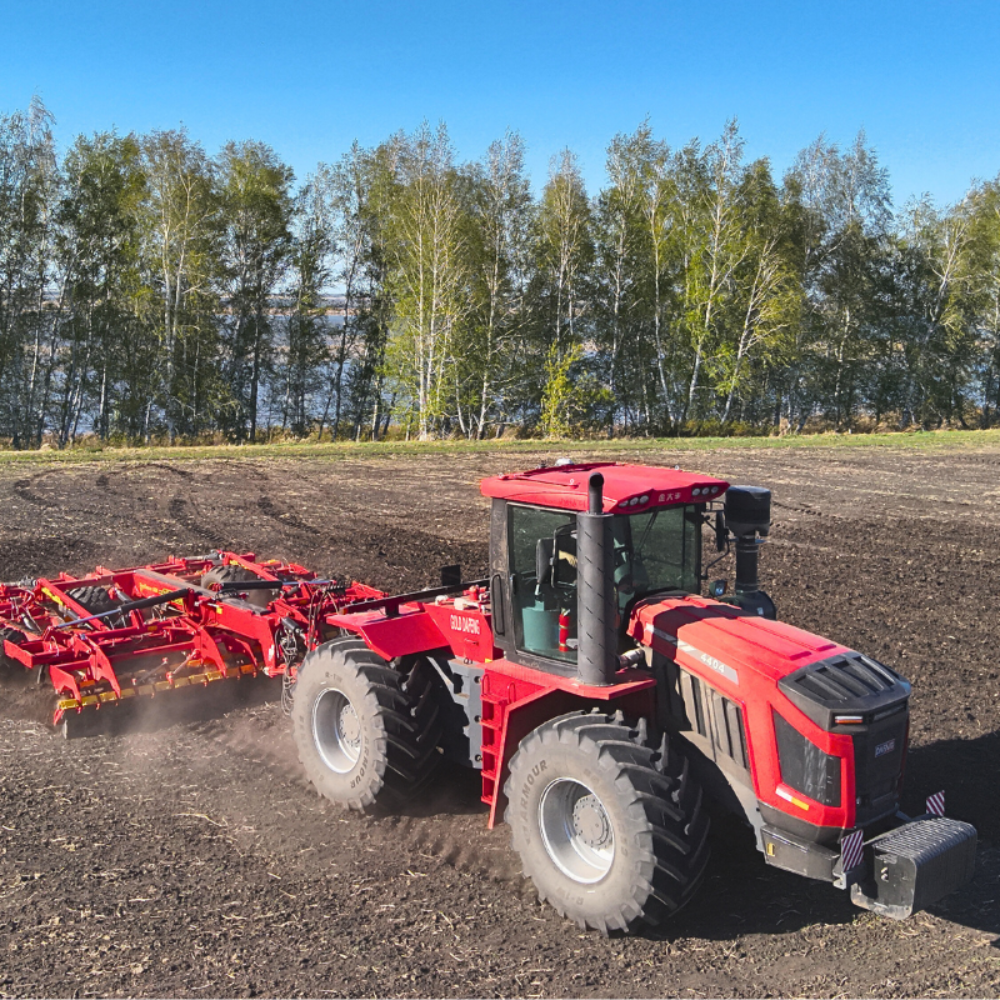

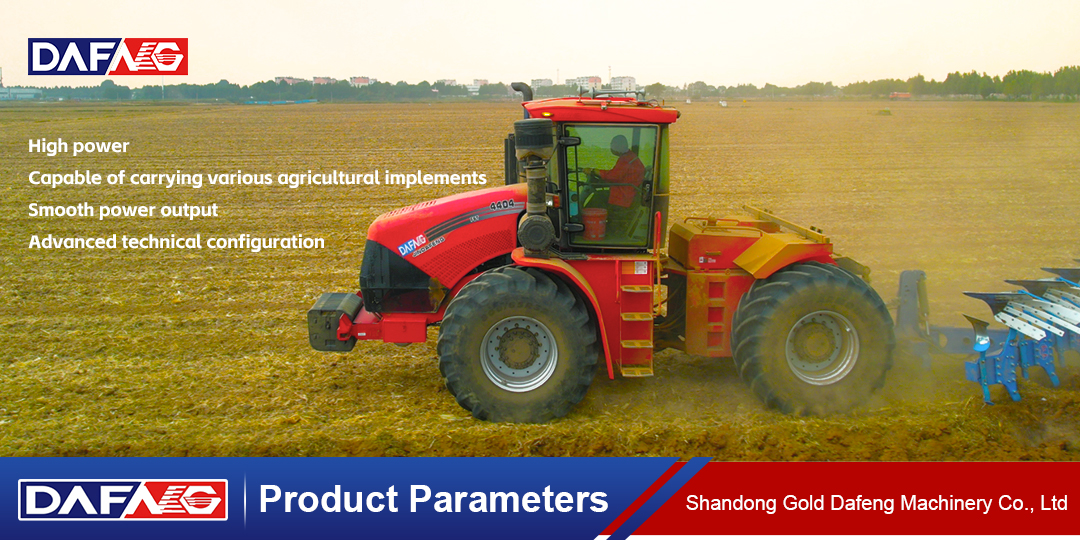

The 4404 tractor's primary function is heavy-duty traction, encompassing various agricultural machinery such as harrows, semi-suspension plows, subsoilers, graders, and seeders

发送消息联系供应商

山东金大丰机械有限公司

查看供应商

TikTok

YouTube

Instagram

Email

Website

成立时间 1995年

注册资本 500 万元人民币

员工规模 1100 人

核心业务农业机械研发、生产、销售

年销售收入约12 亿元

市场覆盖国内粮食主产区，出口多国

产品详情

产品规格

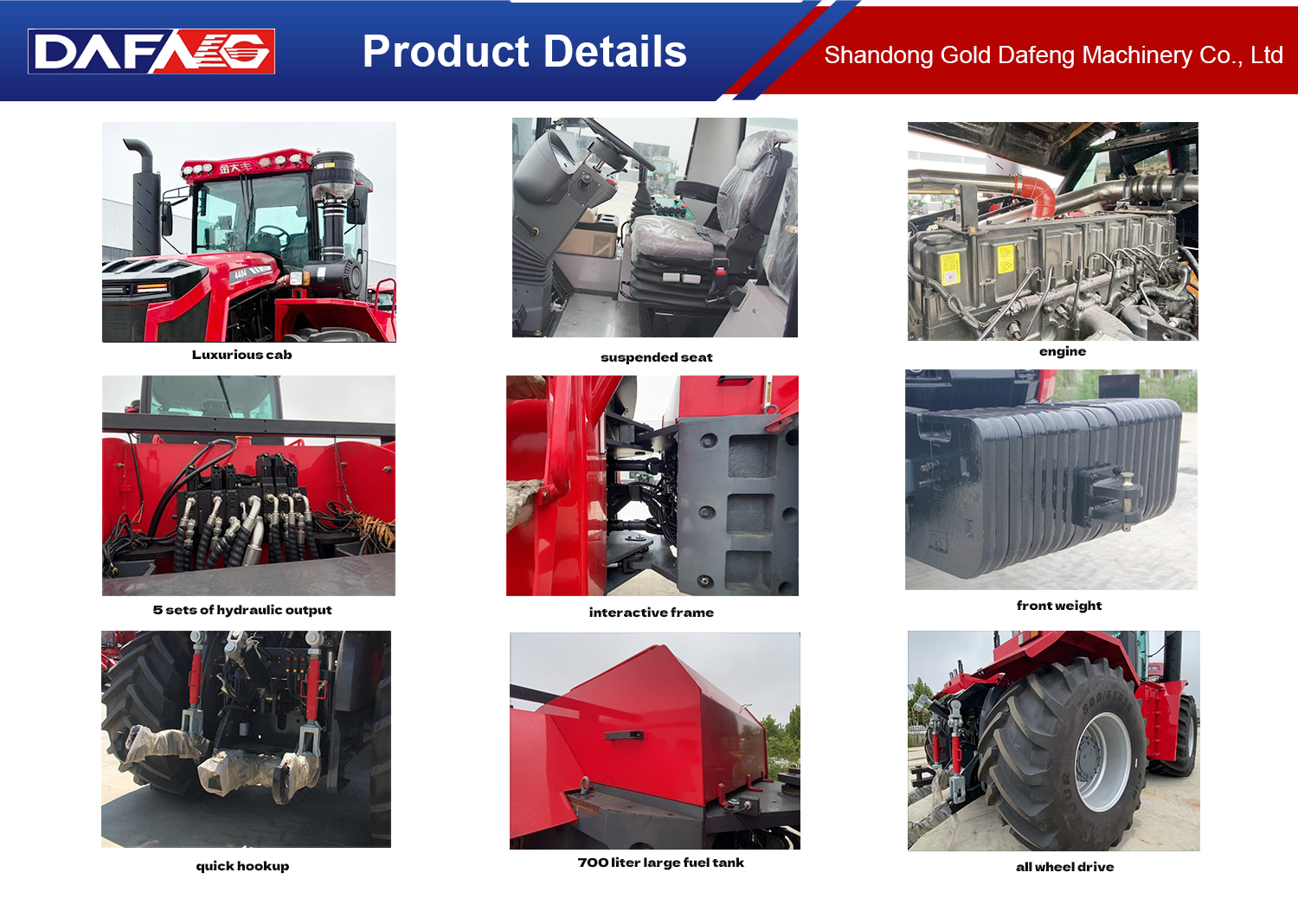

The cab boasts an extra-large space with a width of 1.8 meters and a 3-meter overhead viewing height, providing a wide field of vision and allowing for constant awareness of the surroundings. It utilizes shock-absorbing and sound-insulating materials, features roof-mounted air conditioning, under-seat heating, an ergonomic suspended seat, multi-functional control armrests, and a large display screen showing the vehicle's status. The driving experience is quiet, comfortable, and easy to operate.

2. It features an electronically controlled suspension lifting system, a variable displacement pump with five sets of double-acting hydraulic outputs, one-button lifting and automatic tilting, and a high-definition display screen.

3. The engine delivers powerful performance, utilizing a Yuchai K11 six-cylinder electronically controlled fuel injection engine (turbocharged and intercooled). The engine's total power output for 12 hours is 323.5 kW. An advanced exhaust after-treatment system ensures emissions meet the National IV standard.

4. The transmission uses the Fast 12JSDX240TA, a mature and reliable machine with a wide range of affordable parts and easy maintenance. It features a self-developed shuttle-type transfer case, synchronized shifting of the main transmission, and one-button switching between forward and reverse.

5. The machine boasts an articulated frame structure, fully hydraulic slalom steering, disc brakes, and a total load capacity of 71 tons across the front and rear axles, easily mounting various agricultural implements. With a 3.4-meter wheelbase and a turning radius of only 6.5 meters, it facilitates easy maneuvering. The addition of a 3.2-ton counterweight brings the total weight to 17.5 tons, providing strong traction and powerful all-wheel drive.

6. Equipped with GPS navigation and a 360-degree surround view system, the owner can remotely monitor the machine's status, and the driver can easily survey the surrounding environment.

Dimension (L×W×H)

7500*3250*3800mm

Min. operating weight

18000kg

Wheelbase

3400mm

Wheel track (front/rear)

2341/2341mm

Engine

YUCHAI 440HP,III

Qty of cylinders

6 cylinders

Rated power

440HP/323.4kw

Rated speed

2100 r/min

Steering type

Full hydraulic steering

Brake type

Clamp disc type

Walking device

800-65R32*2/800-65R32*2

Drive train

Single disc, dry

Description

The cab boasts an extra-large space with a width of 1.8 meters and a 3-meter overhead viewing height, providing a wide field of vision and allowing for constant awareness of the surroundings. It utilizes shock-absorbing and sound-insulating materials, features roof-mounted air conditioning, under-seat heating, an ergonomic suspended seat, multi-functional control armrests, and a large display screen showing the vehicle's status. The driving experience is quiet, comfortable, and easy to operate.

2. It features an electronically controlled suspension lifting system, a variable displacement pump with five sets of double-acting hydraulic outputs, one-button lifting and automatic tilting, and a high-definition display screen.

3. The engine delivers powerful performance, utilizing a Yuchai K11 six-cylinder electronically controlled fuel injection engine (turbocharged and intercooled). The engine's total power output for 12 hours is 323.5 kW. An advanced exhaust after-treatment system ensures emissions meet the National IV standard.

4. The transmission uses the Fast 12JSDX240TA, a mature and reliable machine with a wide range of affordable parts and easy maintenance. It features a self-developed shuttle-type transfer case, synchronized shifting of the main transmission, and one-button switching between forward and reverse.

5. The machine boasts an articulated frame structure, fully hydraulic slalom steering, disc brakes, and a total load capacity of 71 tons across the front and rear axles, easily mounting various agricultural implements. With a 3.4-meter wheelbase and a turning radius of only 6.5 meters, it facilitates easy maneuvering. The addition of a 3.2-ton counterweight brings the total weight to 17.5 tons, providing strong traction and powerful all-wheel drive.

6. Equipped with GPS navigation and a 360-degree surround view system, the owner can remotely monitor the machine's status, and the driver can easily survey the surrounding environment.
