Canyao 4.0 intelligent ECU supports 500m long-distance wireless remote control for start, lift, throttle, mowing and spraying. 48V circuit with relay overload protection delivers stable & precise operation.
8mm thick integrated Q235 welded frame with mortise reinforcing ribs, anti-deformation under heavy load. Sandblasted & high-temperature painted for rust & wear resistance, low gravity center ensures stable work on max 35° slopes.
Special DJ track planetary reduction gearbox, hybrid dual motor drive supports forward/reverse, left/right turn and 360° in-place rotation, flexible to pass narrow-row orchards.
Dual-circuit overload protection with human-machine separation design, dual emergency stop on machine & remote controller, one-click shutdown under faults for high safety on hills.
Modular standardized spare parts, operators master operation after half-hour training. Full maintenance tools included to cut daily service cost.

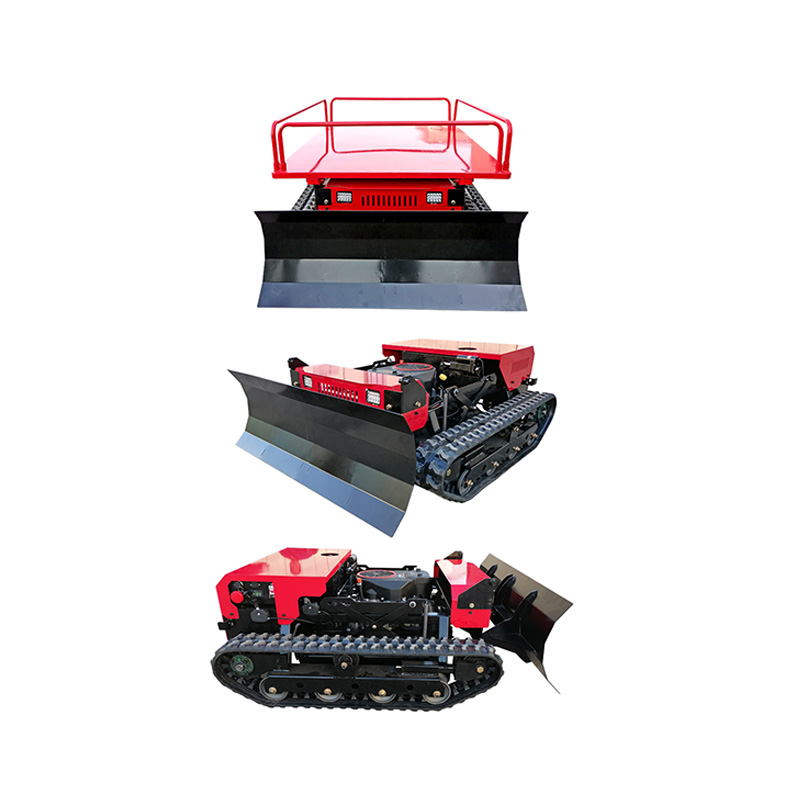

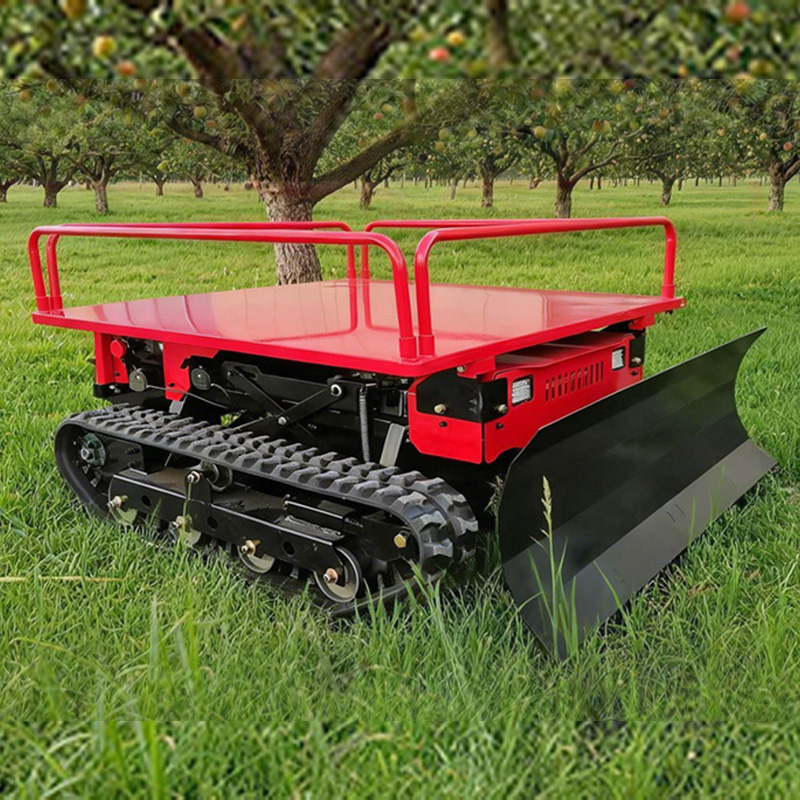

4-in-1 multi-functional design: standard 900mm wide mowing kit, optional spray tank for pesticide, cargo tray for material transport, front dozer blade for soil/snow cleaning, one machine covers multiple jobs to save purchase cost.
All hardware and software independently developed with full trademarks & patents. Motors, tracks and engine adopt top national standard brands, whole machine passed 500-hour continuous extreme durability test.
Thick 65Mn steel mowing blades with good impact & wear resistance, remote adjustable ground clearance 0-30cm to fit weeds of different heights in fruit tree rows.
Low crawler chassis with excellent trafficability, suitable for apple, peach, vine orchards, photovoltaic zones, greenhouses, wasteland and hilly farmland.
Complete machine integrated packing delivery, main unit, functional attachments, wearable parts and export documents all included, one-stop export service including container reinforcement and customs clearance agency.

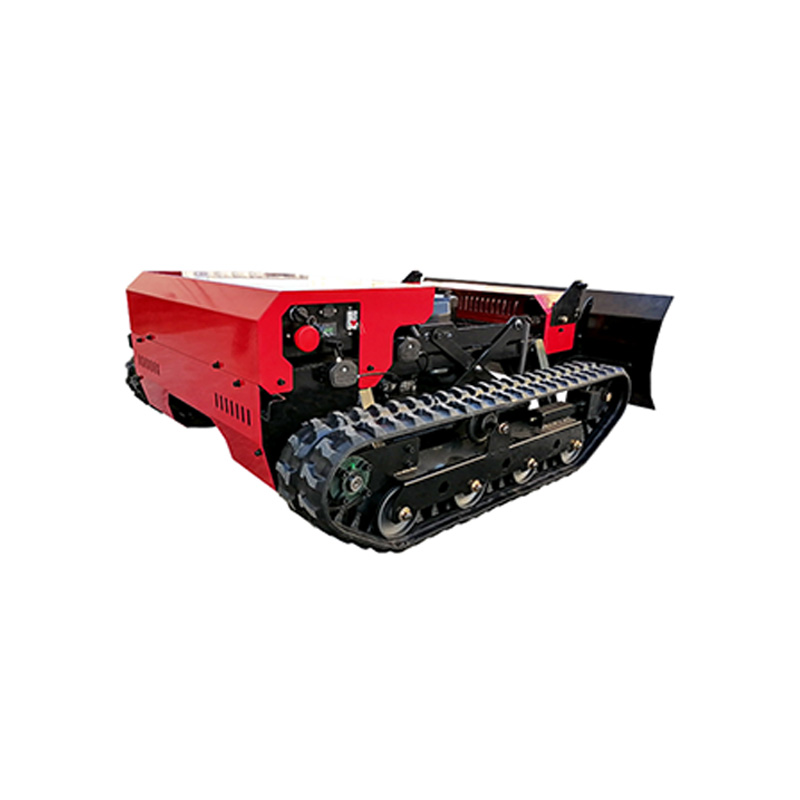

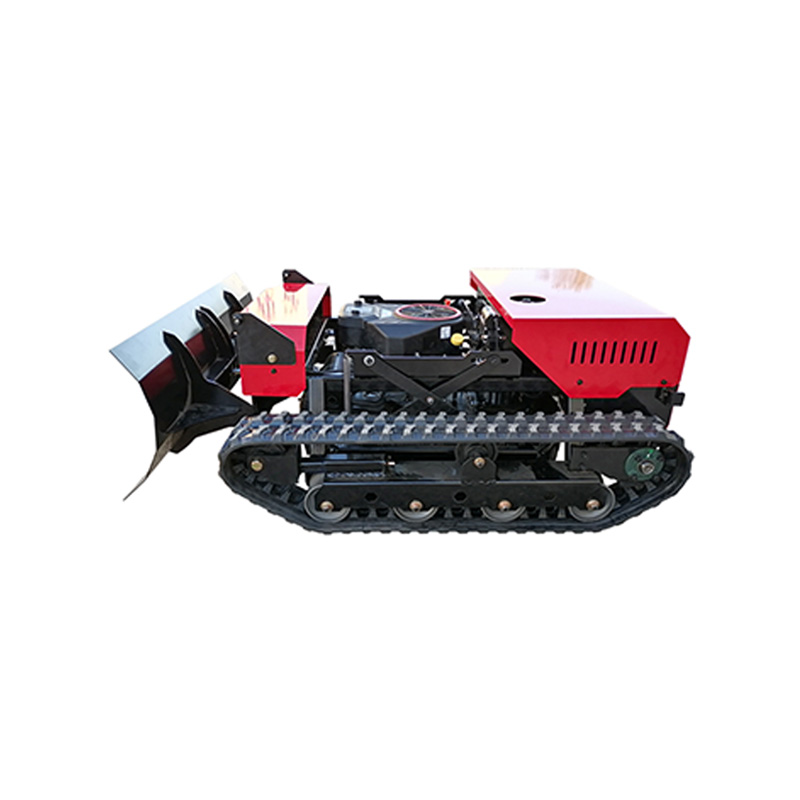

Multi-function Crawler
CY900DQ, Dual 48V Nanpu 800W Motors
Power Unit
Loncin 608 Single Cylinder, 18 HP
Reduction Box
WDJO5 Track Planetary Gearbox, Ratio 31.36 Two-stage
