Factory Price 1 2 3 Ton Reinforced Boom Micro Digger CE EPA ISO Small Crawler Bagger Road Construction Pelle Compact Mini Excavator

Name: Factory Price 1 2 3 Ton Reinforced Boom Micro Digger CE EPA ISO Small Crawler Bagger Road Construction Pelle Compact Mini Excavator
Brand: GLOBALMACHEX
Price: 15577.00 USD
Availability: InStock
Rating: 5 (1 reviews)

$15577.00

发送消息联系供应商

山东山鼎工程机械集团有限公司

Main Products: 微型挖掘机, 轮式挖掘机, 挖掘装载机, 滑移装载机, 割草机, 叉车

查看供应商

成立年份 2015 年成立

主营产品微型挖掘机, 轮式挖掘机, 挖掘装载机, 滑移装载机, 割草机, 叉车

员工人数 101-500 人

工厂面积 1,000-5,000 m²

年销售额 5000 万美元以上

主营市场北美 / 欧洲 / 东南亚 / 南亚 / 中东与北非 / 拉美 / 非洲 / 大洋洲

产品详情

产品规格

贸易信息

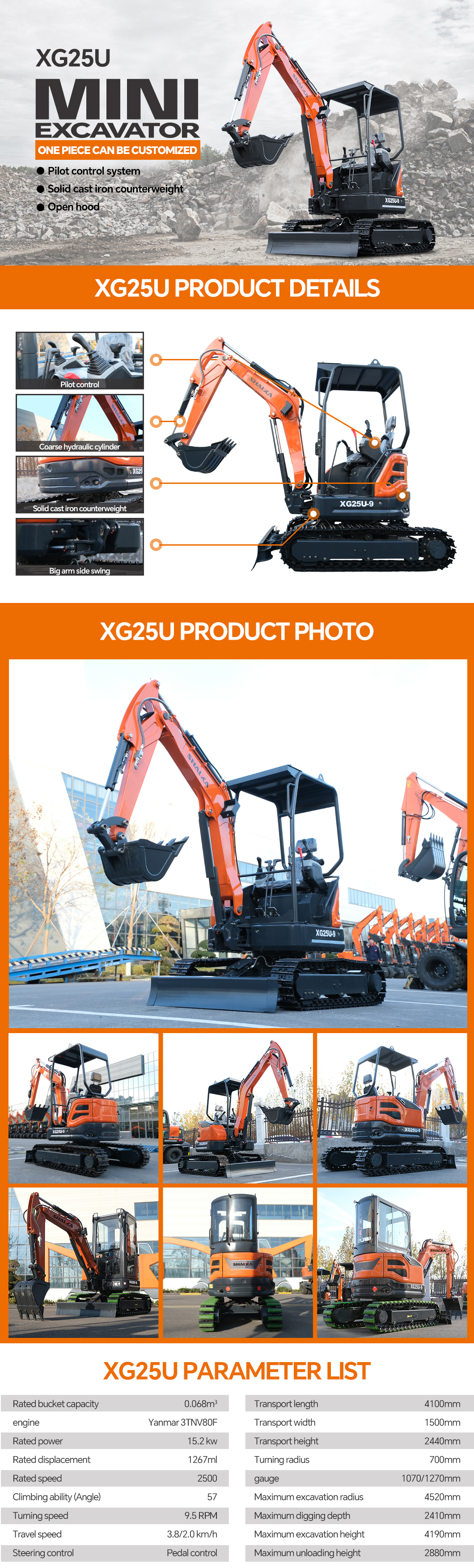

XG25U

25U mini crawler excavator is a 2.5‑ton compact digging machine fitted with closed comfortable cabin, protecting operator from dust, wind and bad weather.

Rated power 14.7KW@2200r/min, max hydraulic pressure 18MPa, maximum digging force reaches 15KN, delivers outstanding performance for earth‑moving, trenching and demolition work. Well‑built dozer blade supports ground leveling, backfilling and improves whole‑machine stability during heavy‑duty operation.

Compact turning radius design, flexible to work in garden, farm, municipal narrow job sites. Ground pressure 35kpa reduces damage to lawn and soft ground. Quick‑change interface supports digging bucket, hydraulic breaker, auger drill, ripper and other attachments to realize multi‑purpose operation.

Spacious enclosed cabin with comfortable seat, great operating experience for long‑time working. Reinforced boom & arm structure improves service life.

山鼎25U-8

We provide 1‑year warranty, lead‑time 15‑30 days, OEM customization service available. Welcome to send inquiry for quotation and technical document.

Model

25U

Overall length

3950mm

Overall width

1400mm

Overall height

2300mm

Minimum radius of gyration

790mm

Track length

1870mm

Track width

250mm

Min. ground clearance

250mm

Platform width

1330mm

Engine hood height

1350mm

Platform height above ground

480mm

Weight

2420Kg

Bucket capacity

0.1m³

Rated power

14.7KW

Rated rotation speed

2200r/min

Max hydraulic pressure

18MPa

Max. grade

30°

Ground pressure

35kpa

Max platform rotation speed

11rpm

Max digging force

15KN

Max. digging height

4300mm

Max. dumping height

2530mm

Max. digging depth

2550mm

Max digging radius

4150mm

Digging radius of max. digging height

2700mm

Min. radius of gyration

1800mm

Max. sinking depth of bulldozer

300mm

Max. lifting height of bulldozer

330mm

Numbers of track shoe sections on one side

44pieces

Boom length

1950mm

Arm length

950mm

Bucket width

450mm

Max. walking speed

2.5‑3.5Km/h

Max. traction

16KN

起订量

1 件

交货期

7day

供货能力

10 件/周

发货港口

Qingdao port

贸易条款

FOB, CIF

Description

XG25U

25U mini crawler excavator is a 2.5‑ton compact digging machine fitted with closed comfortable cabin, protecting operator from dust, wind and bad weather.

Spacious enclosed cabin with comfortable seat, great operating experience for long‑time working. Reinforced boom & arm structure improves service life.

山鼎25U-8

We provide 1‑year warranty, lead‑time 15‑30 days, OEM customization service available. Welcome to send inquiry for quotation and technical document.
