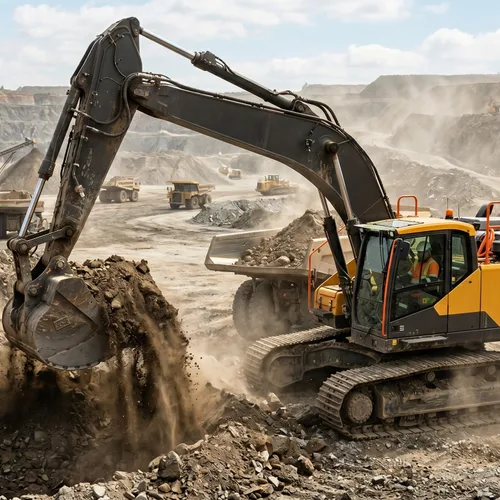

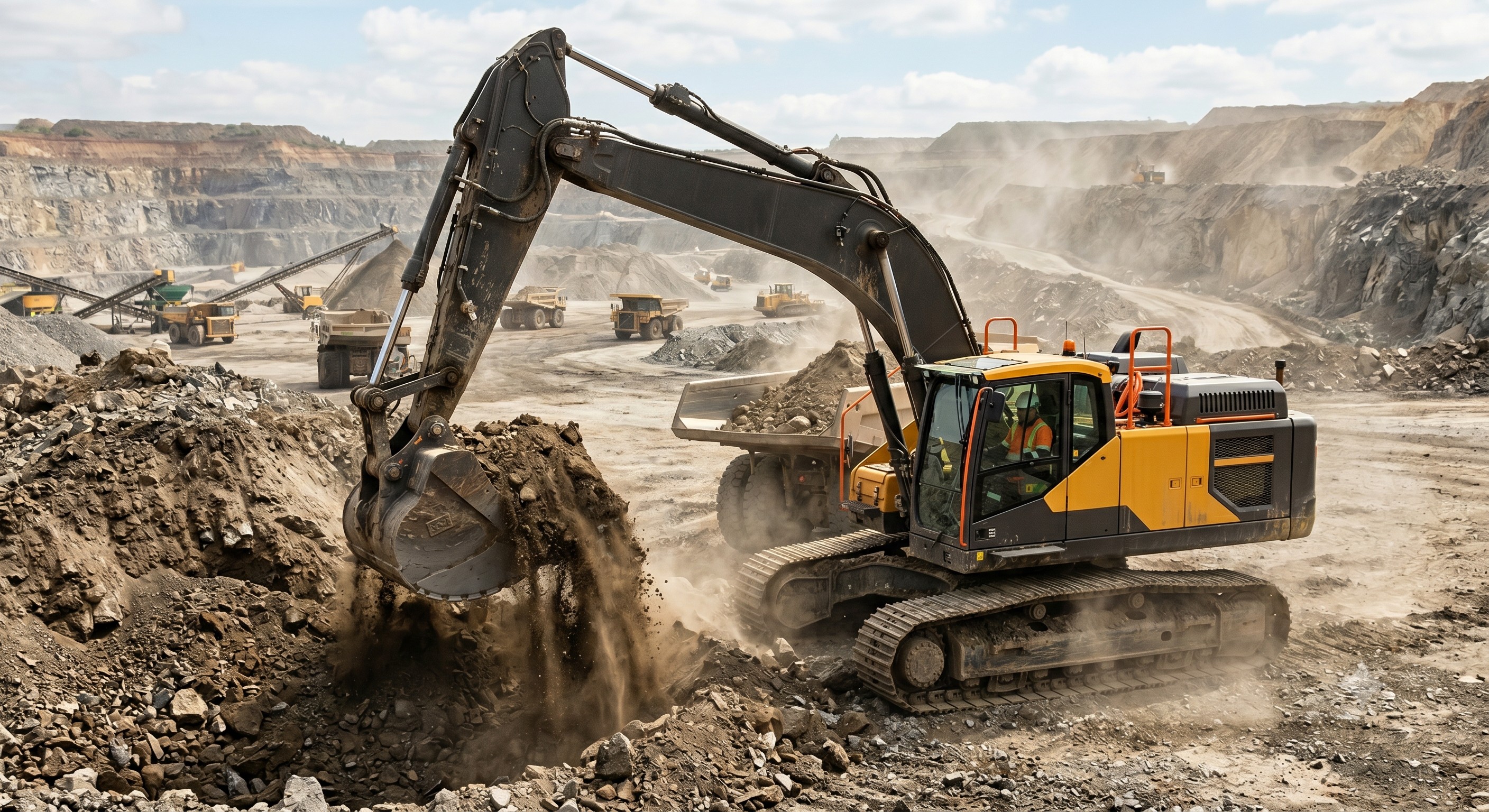

The ZE5E Fully Electric Excavator is a 5.2-ton compact crawler excavator engineered for high-productivity, zero-emission operation. Powered by a 45kW permanent magnet synchronous motor and a 150kW·h lithium iron phosphate (LFP) battery pack, it delivers equivalent digging force to a diesel-powered 50HP machine while reducing total cost of ownership by up to 42%. Ideal for municipal projects, indoor demolition, and emission-controlled construction zones.
1. Zero Emissions, No Compromise. Unlike diesel excavators, the ZE5E emits zero CO2 or particulate matter, allowing operation inside warehouses, tunnels, and city centers without ventilation or environmental permits.
2. 30% Lower Operational Costs. Electricity costs are 70% less than diesel equivalents. The electric motor has no fuel filters, injectors, or DPF systems, reducing maintenance by 40% annually.
3. Heavy-Duty Undercarriage. Sealed and lubricated track chain with bolt-on steel sprockets and track guards ensures 5,000+ hours of service in abrasive environments like quarry tailings and demolition debris.

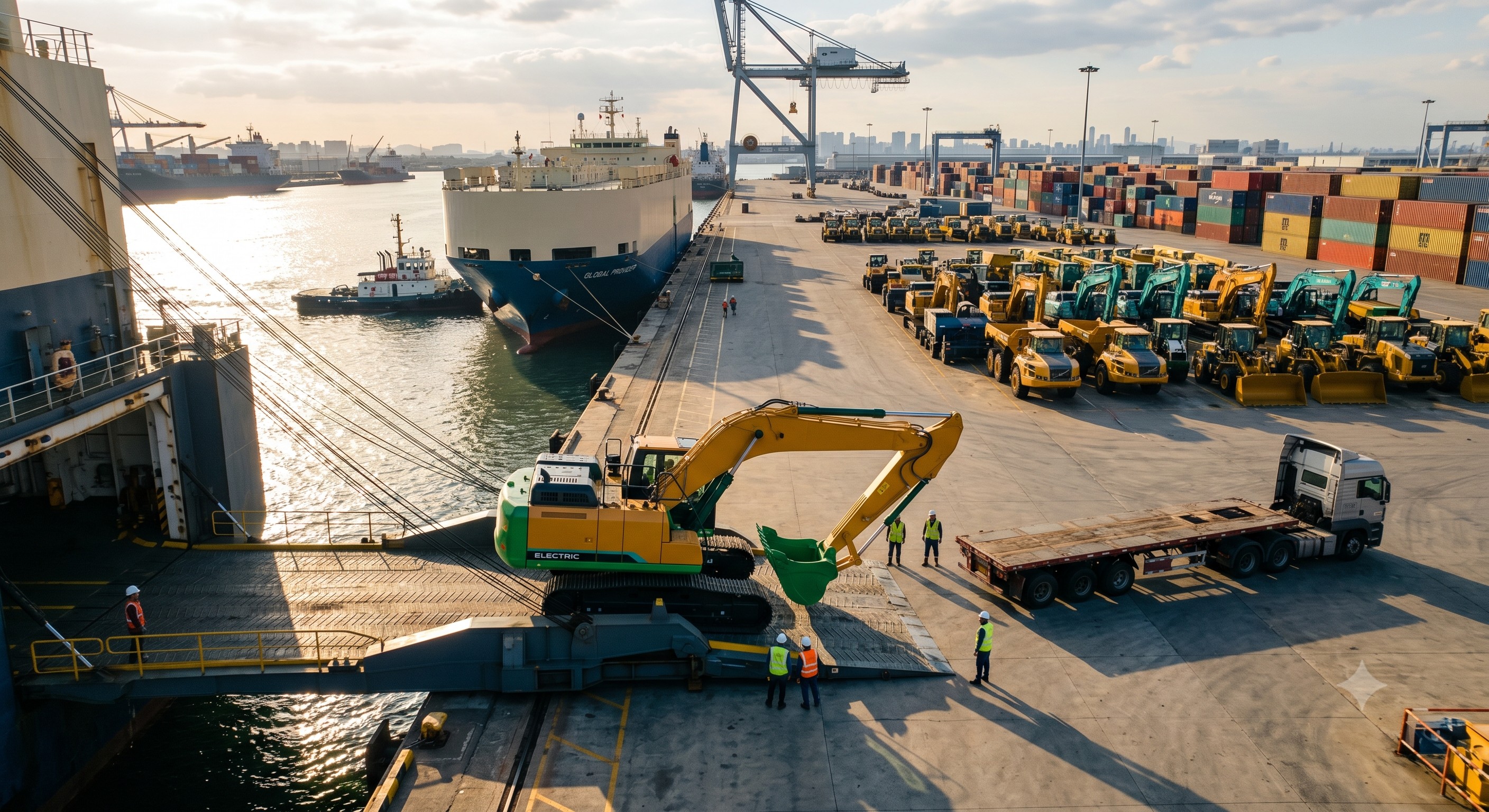

4. Global Logistics Ready. Available for container or RoRo shipping from our bonded export yard. Compliant with EU CE, UKCA, and Australia RCM standards. 1-Year global warranty with local parts warehouse coverage in Dubai, Rotterdam, and Singapore.

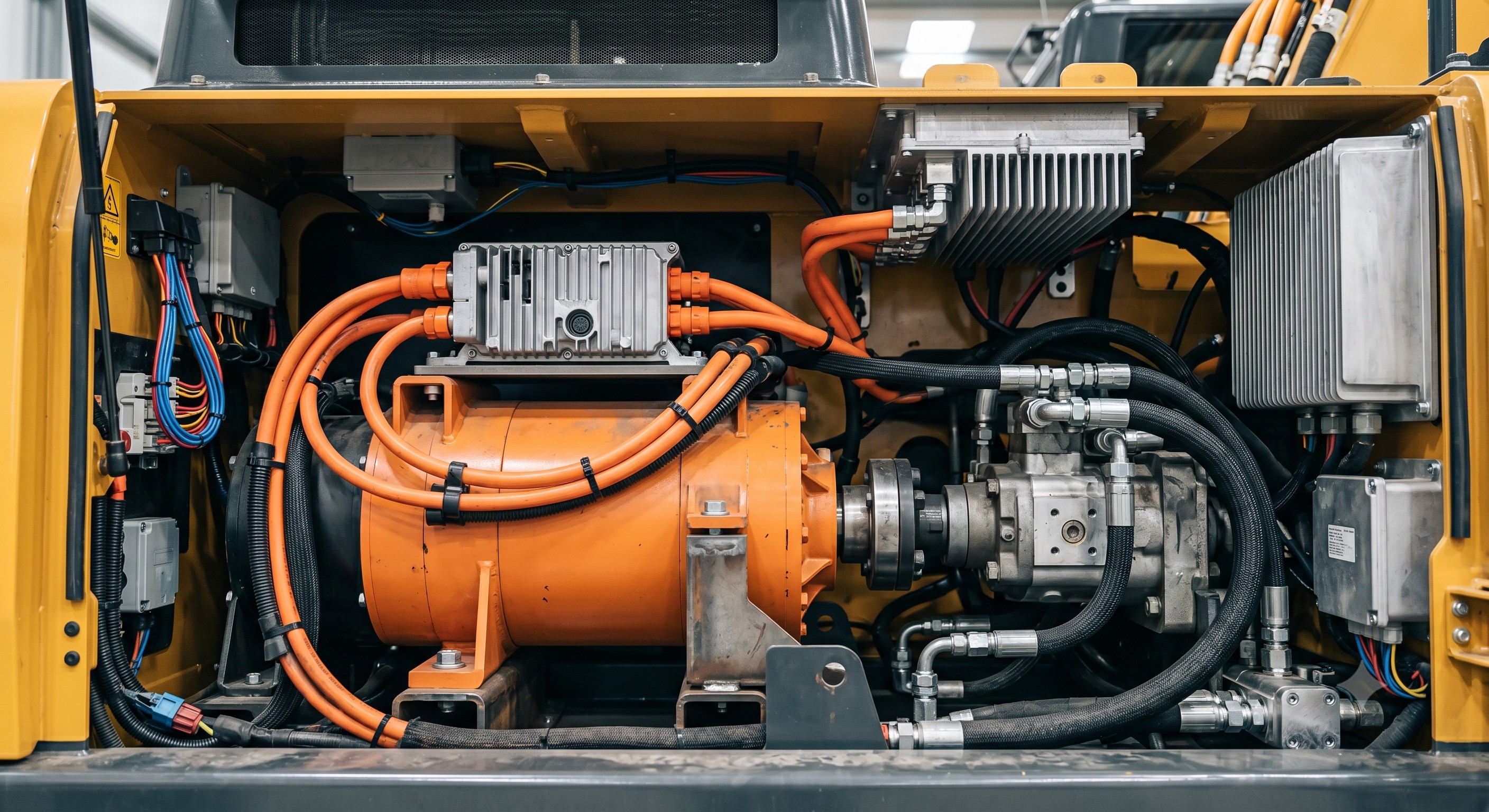

The ZE5E integrates a liquid-cooled 45kW permanent magnet motor directly coupled to a load-sensing hydraulic pump (65 L/min at 2,400 rpm). The LFP battery pack is mounted low in the counterweight for optimal stability and offers 6 hours of continuous digging under standard load. An onboard 7.5kW AC charger supports 100–480V universal input, achieving full charge in 3.5 hours. The hydraulic system features a variable displacement piston pump for auxiliary flow (35 L/min) to power breakers or augers. The reinforced X-frame undercarriage uses 350HB steel track links and triple-flange track rollers for extreme longevity. Inside the cab, a 5-inch LCD display shows real-time SOC, motor temperature, and predictive remaining runtime. Joysticks with proportional thumb wheels provide precise hydraulic metering.
Below is the primary data for the Fully Electric Excavator ZE5E under ISO 9249 standards.
In residential subdivisions or road widening projects with noise and emission limits, the ZE5E excavates foundations, trenches, and grading with 38kN arm crowd force. The silent operation allows night shifts without neighbor complaints.
Inside concrete crushing plants or building dismantling sites, zero exhaust eliminates carbon monoxide risk. The compact tail swing (990mm radius) and variable track width (1,350–1,650mm) enable maneuvering through doorways and between pillars.
Quarry & Mining Support – Stockpile reclamation, tailings cleanup, and equipment pad maintenance can be performed without diesel fume accumulation in valley pits. The sealed electrical connectors withstand dust ingress to IP67 rating.
Standard lead time is 25–35 days ex-warehouse. For RoRo shipping, vessel scheduling adds 20–40 days depending on destination (e.g., 35 days to Lagos, 25 days to Houston). Urgent orders can be processed within 15 days for LCL container consolidation.
Yes. Every ZE5E includes a standard wear parts kit (20 bucket teeth, 10 side cutters, 4 track pad bolts set). Genuine replacement parts are stocked in our regional hubs for 48-hour air freight delivery anywhere worldwide.
The LFP battery pack is designed for 3,500 full cycles to 80% depth of discharge, translating to 12,000+ operating hours. A complete battery replacement costs US$12,800 and is a 2-hour swap procedure by any trained technician using a forklift and quick-disconnect cables.
Yes. The dual-input charging system accepts 220V–480V AC from any 3-phase generator with at least 15kVA capacity. It will simultaneously run the machine and charge the battery at reduced rate (5-hour charge time via generator).
We provide free digital operation manuals and video tutorials in 12 languages. On-site training is available for orders of 3+ units (travel cost plus US$850/day). The interface is designed to be intuitive for any diesel excavator operator — the same joystick patterns with an added battery gauge.
