HUADE Overflow valve, safety valve of hydraulic system DB10-1-50B/315

HUADE Overflow valve, safety valve of hydraulic system DB10-1-50B/315

USD $10150.00 / 件

最小起订量: 1件

参考价格:
USD $10150.00
最小起订量:
1件
发送询盘

产品特点与应用

This relief valve features higher working pressure and stronger flow capacity. It can effectively limit and stabilize the pressure of the hydraulic system, protecting the components within the system.This valve can be widely applied in hydraulic systems of equipment such as lifting and transportation, construction machinery, engineering vehicles, machine tools, ships, and metallurgy.

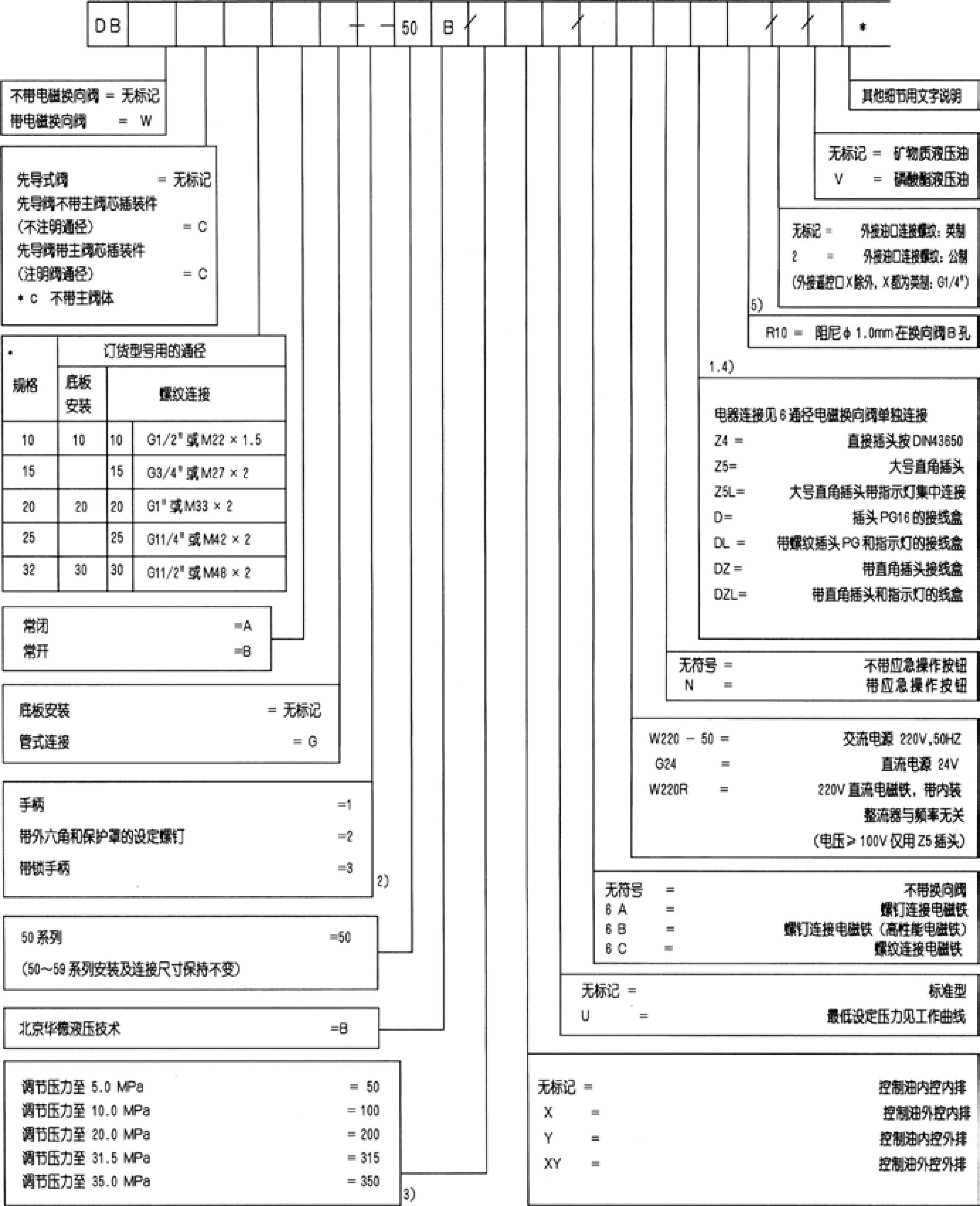

This series of relief valves are available in three specifications: 10, 20, and 30. The threaded connection type (tube connection) is available in five specifications: 10, 15, 20, 25, and 32. The set pressure is available in five options: 5.0 MPa, 10.0 MPa, 20.0 MPa, 31.5 MPa, and 35.0 MPa. The flow rate is 250 L/min for specification 10), 500 L/min for specifications 15, 20, and 25), and 650 L/min for specification 32. The connection methods include plate type, tube type, and cartridge type.
