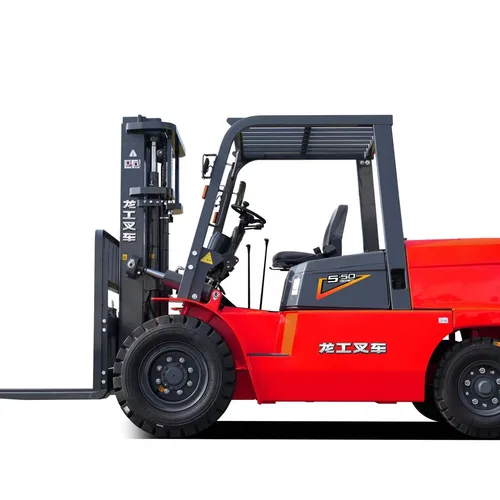

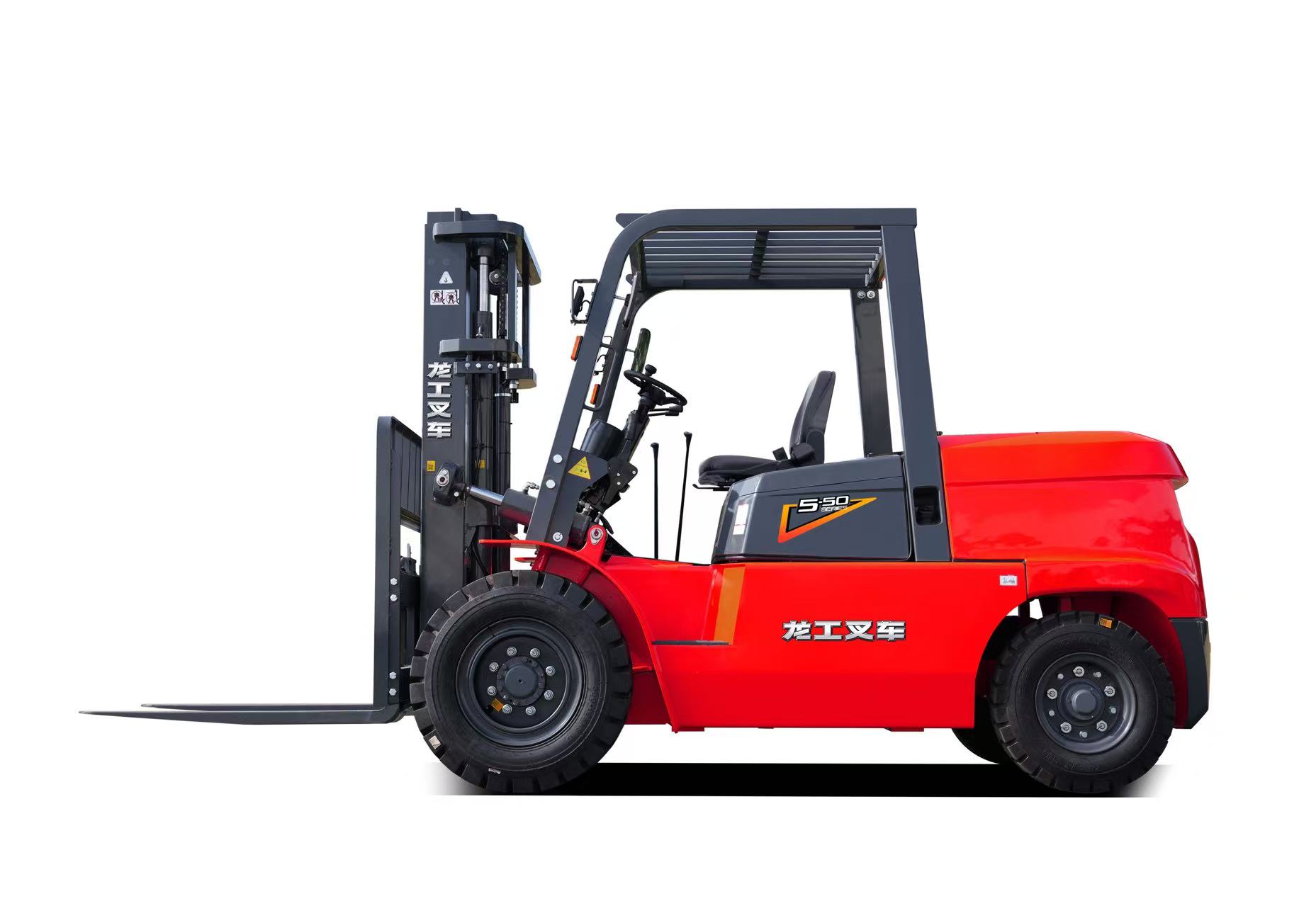

Longgong Forklift CPC50-5 Internal Combustion Forklift

Name: Longgong Forklift CPC50-5 Internal Combustion Forklift
Brand: GLOBALMACHEX
Availability: InStock
Rating: 5 (1 reviews)

1. Development of a brand-new 5 Series platform featuring an innovative design and a streamlined overall body shape. 2. The starter battery is placed inside the hood cover, enhancing its safety and contributing to the overall aesthetic cleanliness of the vehicle. 3. The frame’s interior has been widened, further enhancing ease of maintenance. 4. The fuel tank capacity has been increased, providing better range. 5. Digital display instruments with enhanced key functions enable human-machine interaction, making them convenient and practical. 6. Optimize the design of the mast system and counterweights to improve forward and rear visibility, reduce blind spots during operation, and enhance overall safety. 7. The fuel filler opening is designed to be hidden, preventing it from being damaged or compromised, thereby enhancing safety. 8. Concealed electrical control box and toolbox, separate compartment, dust- and water-resistant, safer and more practical. 9. The standard equipment includes an air filter blockage alarm function, which can promptly alert the user through the instrument display interface to perform maintenance on the air filter, thereby enhancing engine stability. 10. The mast lowering cushioning function effectively prevents the cargo from striking the ground during descent, thereby protecting the cargo from damage and minimizing noise that could affect the driver, thereby enhancing driving safety and comfort. 11. The left and right side panels beneath the hood feature quick-release design elements, making it convenient for routine maintenance and servicing of the engine. 12. Equipped with a complete set of LED lighting, which offers a longer lifespan; the vehicle’s electrical system meets the IPX4 water-resistance standard, enabling operation outdoors during heavy rainfall, thereby enhancing overall vehicle reliability. 13. Optimization of the overall vehicle hydraulic system design to reduce hydraulic pipe pressure losses, effectively lower hydraulic oil temperature, and increase the lifespan of hydraulic components. 14. Equipped with high-performance radiators and optimized heat dissipation channels, this enhances heat dissipation performance and further improves the reliability of the engine and transmission. 15. The framework-style upper beam structure provides more rational stress distribution, enhancing the rigidity and strength of the hoisting frame.

$5912.00 - 8868.00

发送消息联系供应商

济南泉思机械设备有限公司

查看供应商

成立年份 2016 年成立

员工人数 50 人以下

工厂面积 1,000 m² 以下

年销售额 100 万 - 500 万美元

主营市场东南亚 / 中东与北非 / 非洲

产品详情

产品规格

贸易信息

● More efficient 1. The mechanical vehicle model features an enlarged clutch and friction disc, which increases the contact area with the engine flywheel by 8% compared to existing models. This results in improved overall stability, longer lifespan of the friction discs, and higher transmission efficiency. 2. Utilizes lightweight design, shifting the vehicle’s center of gravity rearward. This results in a 3% reduction in the vehicle’s weight under the same load capacity, saving 5% in fuel consumption compared to existing models during a one-hour “type test.”
● More reliable.1. The front and rear pillars of the roof guard frame have been redesigned to be thicker, making the entire vehicle safer and more reliable. 2. The iron-plated molded engine hood offers improved sealing, enhanced aesthetics, and increased portability, resulting in a 5% reduction in overall vehicle noise. 3. The diameter of the inclined cylinder rod has been increased, significantly enhancing the strength and rigidity of the hydraulic cylinder, reducing leaks caused by piston rod deformation, and extending the lifespan of the hydraulic cylinder. 4. Enhance the design of the dual ventilation holes with balance weights, increasing the area of the heat dissipation channels by 10% compared to existing models. This significantly improves cooling performance, thereby extending the lifespan of critical components such as the engine and enhancing the reliability of high-strength heavy-duty operations. 5. All models come standard with LED signaling lights, significantly extending the lifespan of the lighting fixtures. The sleek and aesthetically pleasing design of the front headlight protection system provides maximum protection against collisions.
● More convenient. 1. A newly designed, larger, and more slip-resistant boarding step, which is both more robust and aesthetically pleasing, making it easier and safer for operators to board the vehicle. 2. The internal space of the locomotive body is more spacious, the arrangement of components is more logical, and the opening angle of the hood has been increased to 80 degrees, making overall maintenance easier.
● More comfortable. 1. The height of the step onto the vehicle has been reduced by 2% compared to existing models, resulting in an increase of 5% in legroom, making overall vehicle operation more comfortable. 2. Optimized design of the steering column, making the overall steering process lighter and the adjustment of the steering wheel more smooth in both directions. 3. Equipped with brand-new, wider and larger seats, providing greater comfort while operating the entire machine.

Brand

Longgong

Model

CPC50-5

Power Type

Diesel oil

Rated Load Capacity

5000kg

Load Center Distance

500mm

Max Lifting Height (with Backrest)

3000mm

Free Lift Height

150mm

Fork Size

1070mm

Mast Forward/Backward Tilt Angle

6/12deg

Min Turning Radius

2920mm

Min Right Angle Stacking Width

4740mm

Min Ground Clearance

175mm

Overhead Guard Height

2450mm

Front Overhang

545mm

Max Travel Speed (Full Load)

19Km/h

Max Lifting Speed (Full Load)

380mm/s

Max Traction Force (Full Load)

60KN

Max Gradeability

21%

Overall Length (with/without Forks)

4350/3280mm

Overall Width

1480

Lowered Mast Height

2480mm

Tyre Size

300-15-20PR/7.00-12-12PR

Wheelbase

2100mm

Wheel Track (Front/Rear)

1190/1130mm

Unladen Weight

6500kg

Engine Model

Xincai4D35Y41-022

Engine Rated Power

55.8/2200kw/r

Engine Rated Torque

320/（1500~1200）N·m/r

Fuel Tank Capacity

90ltr

Transmission Type/Gear

Manual transmission

起订量

3000 公斤

交货期

15-25days

Description

● More efficient 1. The mechanical vehicle model features an enlarged clutch and friction disc, which increases the contact area with the engine flywheel by 8% compared to existing models. This results in improved overall stability, longer lifespan of the friction discs, and higher transmission efficiency.
2. Utilizes lightweight design, shifting the vehicle’s center of gravity rearward. This results in a 3% reduction in the vehicle’s weight under the same load capacity, saving 5% in fuel consumption compared to existing models during a one-hour “type test.”
● More reliable.1. The front and rear pillars of the roof guard frame have been redesigned to be thicker, making the entire vehicle safer and more reliable.
2. The iron-plated molded engine hood offers improved sealing, enhanced aesthetics, and increased portability, resulting in a 5% reduction in overall vehicle noise.
3. The diameter of the inclined cylinder rod has been increased, significantly enhancing the strength and rigidity of the hydraulic cylinder, reducing leaks caused by piston rod deformation, and extending the lifespan of the hydraulic cylinder.
4. Enhance the design of the dual ventilation holes with balance weights, increasing the area of the heat dissipation channels by 10% compared to existing models. This significantly improves cooling performance, thereby extending the lifespan of critical components such as the engine and enhancing the reliability of high-strength heavy-duty operations.
5. All models come standard with LED signaling lights, significantly extending the lifespan of the lighting fixtures. The sleek and aesthetically pleasing design of the front headlight protection system provides maximum protection against collisions.
● More convenient.
1. A newly designed, larger, and more slip-resistant boarding step, which is both more robust and aesthetically pleasing, making it easier and safer for operators to board the vehicle.
2. The internal space of the locomotive body is more spacious, the arrangement of components is more logical, and the opening angle of the hood has been increased to 80 degrees, making overall maintenance easier.
● More comfortable.
1. The height of the step onto the vehicle has been reduced by 2% compared to existing models, resulting in an increase of 5% in legroom, making overall vehicle operation more comfortable.
2. Optimized design of the steering column, making the overall steering process lighter and the adjustment of the steering wheel more smooth in both directions.
3. Equipped with brand-new, wider and larger seats, providing greater comfort while operating the entire machine.
