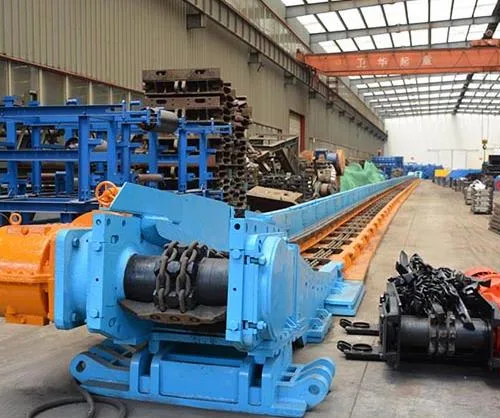

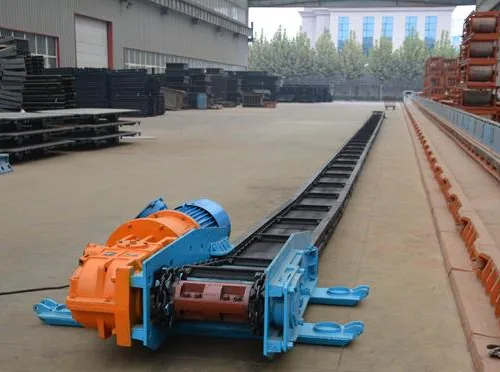

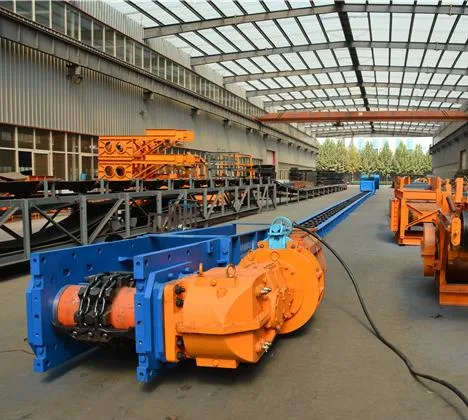

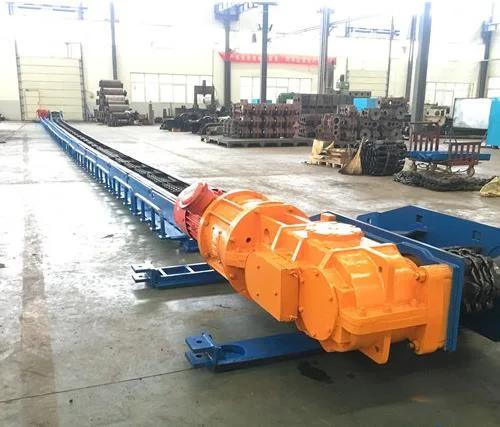

Scraper Conveyor

Name: Scraper Conveyor
Brand: GLOBALMACHEX
Availability: InStock
Rating: 5 (1 reviews)

The scraper conveyor is a key piece of bulk material handling equipment, widely used in underground coal mines, mining plants, building materials and chemical industries. It is designed for continuous transportation of loose materials like coal, ore and minerals.

$3000.00 - 9000.00

发送消息联系供应商

济宁经济开发区吉达铁路设备有限公司

查看供应商

注册日期 2017年06月24日

年销售额 6800万元

员工人数 1,000+

主营产品矿用机械

主营市场中亚、中东、大洋洲

产品详情

产品规格

Structure & Working Principle: The conveyor consists of high-strength central troughs, explosion-proof drive units (motor + gearbox), sprocket assemblies, high-tensile scraper chains, and tail tensioning devices. The central trough is made of wear-resistant alloy steel with strong impact resistance; explosion-proof motors are suitable for flammable and explosive underground environments; scraper chains are made of high-tensile alloy steel with high tensile strength and long wear life.

The motor drives the gearbox to rotate the sprocket, which pulls the closed scraper chain to circulate inside the central trough. The scrapers push the materials along the trough, realizing continuous conveying. The equipment can be arranged horizontally, inclined in roadways with an angle of ≤25°, and some models support turning conveying in curved roadways.

Key Advantages:
1. Robust structure that withstands impact loads from large materials, adapting to complex underground conditions.
2. Wear-resistant alloy design for core wearing parts, easy replacement and low maintenance costs.
3. High conveying efficiency and stable operation, enabling continuous mechanized production when linked with shearers and hydraulic supports.
4. Customizable trough width, conveying length and capacity to meet different production requirements of mines.
Applications: Widely used for coal transportation in underground mining faces and gate roadways of coal mines, as well as for bulk material conveying in metal mines, building materials, chemical industries, etc.

Model

SGB420/30, SGB630/150, SGZ730/320, SGZ764/400, etc.

Central Trough Width

420mm / 630mm / 730mm / 764mm

Chain Specification

Round link chain φ14×50 / φ18×64 / φ22×86 / φ26×92

Drive Power

30~400 kW (single/dual motor drive optional)

Conveying Inclination

≤25°

Conveying Capacity

100~1000 t/h

Chain Speed

0.8~1.5 m/s

Conveying Length

Customizable (extendable by multi-section splicing)

Explosion-proof Grade

Optional Exd I Mb (mine explosion-proof standard)

Applicable Environment

Underground coal mines / surface, explosion-proof configuration for flammable and explosive conditions

Description

Structure & Working Principle: The conveyor consists of high-strength central troughs, explosion-proof drive units (motor + gearbox), sprocket assemblies, high-tensile scraper chains, and tail tensioning devices. The central trough is made of wear-resistant alloy steel with strong impact resistance; explosion-proof motors are suitable for flammable and explosive underground environments; scraper chains are made of high-tensile alloy steel with high tensile strength and long wear life.

Key Advantages:
1. Robust structure that withstands impact loads from large materials, adapting to complex underground conditions.
2. Wear-resistant alloy design for core wearing parts, easy replacement and low maintenance costs.
3. High conveying efficiency and stable operation, enabling continuous mechanized production when linked with shearers and hydraulic supports.
4. Customizable trough width, conveying length and capacity to meet different production requirements of mines.
Applications: Widely used for coal transportation in underground mining faces and gate roadways of coal mines, as well as for bulk material conveying in metal mines, building materials, chemical industries, etc.
