Basic Information

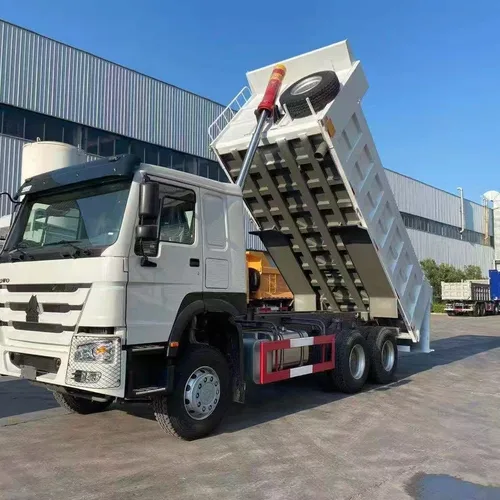

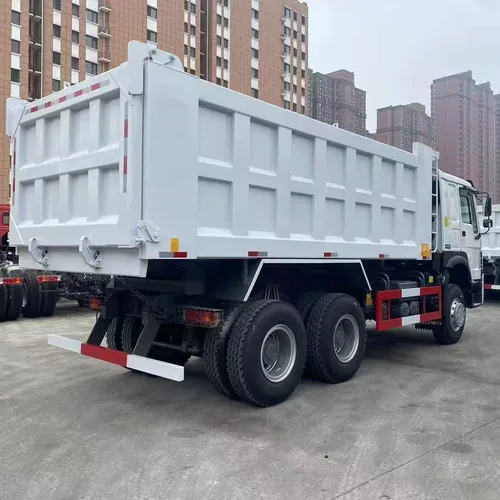

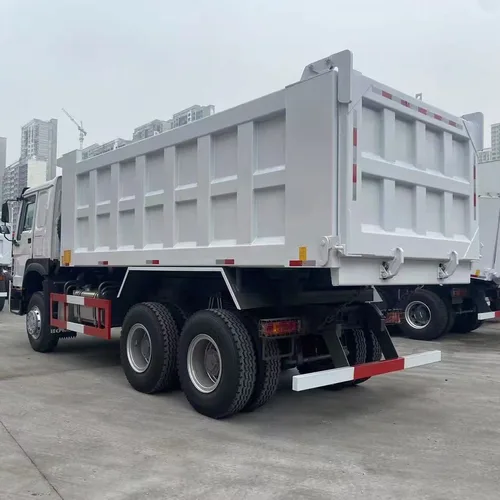

- Vehicle Type: SINOTRUK HOWO 6×4 Dump Truck
- Model No.: ZZ3257N3847B1
2. Cab Configuration
- Cab Model: HW76 New Front Face
- Features: Single sleeper, factory air conditioning, high-strength front bumper
3. Powertrain System
- Engine: SINOTRUK WD615.47 Diesel Engine, Euro 2 Emission Standard, 371HP
- Transmission: HW19710 Gearbox + HW50 Auxiliary Gearbox
- Front Axle: VGD95
- Rear Axle: MCX16, Final Drive Ratio 5.451
- Fuel Tank: 300L
4. Chassis & Tires
Tire Specification: 12.00R20
5. Optional & Standard Equipment
Optional: Main airbag, oil filter, primary Parker fuel pre-filter, intercooler protection, rear towing hook, buzzer, fire extinguisher, under-chassis start/stop control
- All other configurations are standard factory specifications
6. Cargo Body (Upper Structure)
- Dimension: 5600 × 2300 × 1500 mm
- Plate Thickness: 8mm bottom / 6mm side walls
- Material: High-strength manganese steel
- Structure: Rectangular box with 4 longitudinal beams
- Hydraulic System: Domestic wide-body 180 front-top telescopic cylinder
- Additional Features: Front climbing ladder, integrated mudguards, front/rear lamp guards, small lamp covers on side lights, anti-rust paint inside the box, full welding on bottom triangular plates, fuel tank & battery anti-theft protection, full-vehicle wax coating for export, body color matched with chassis color, with factory logos retained.
