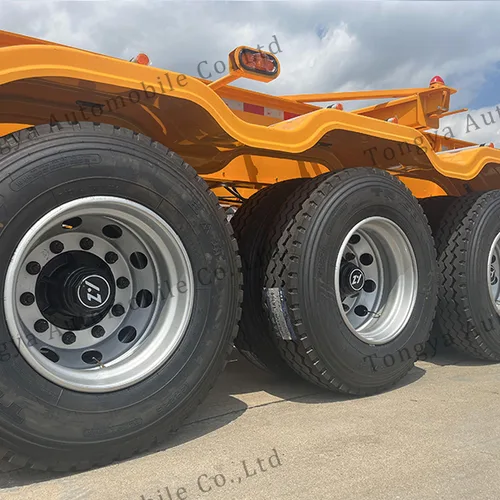

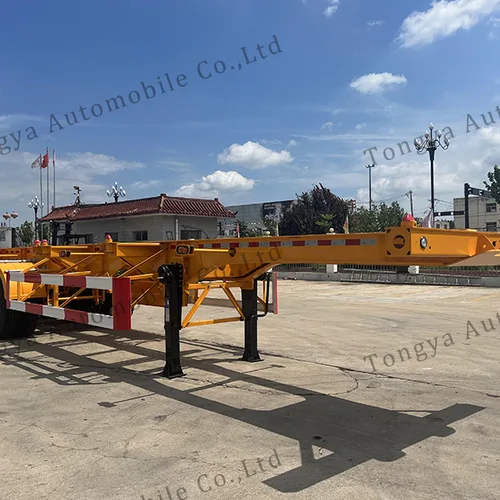

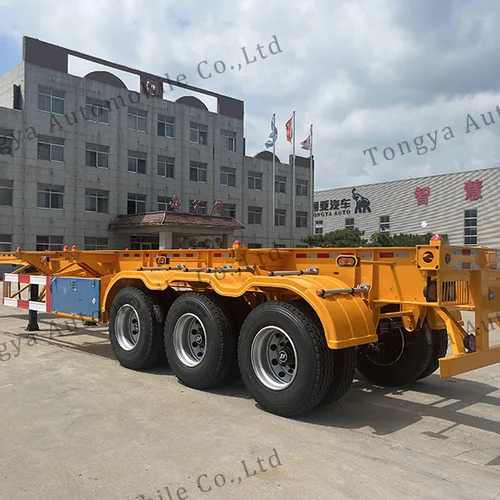

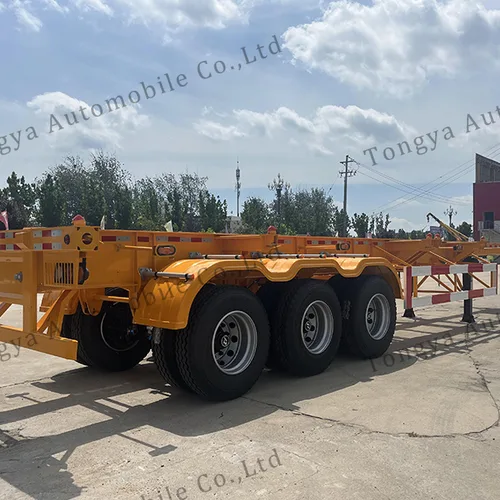

Skeleton Semi Trailer

Name: Skeleton Semi Trailer
Brand: GLOBALMACHEX
Availability: InStock
Rating: 5 (1 reviews)

TONGYA skeletal trailer can be configured for specific container combinations, minimizing the unladen weight. Can be configured individually for: 20h, 30', 40', 45', 2x20' or any combination of all of these containers.
The overall structure of the skeleton trailer is straight beam or gooseneck, it is mainly used in the logistics systems of ships, ports, routes, highways, transit stations, bridges, tunnels and multimodal transport.
If you have special needs for a skeleton semi-trailer with a gooseneck, we can design it for you according to your requirements.

$9000.00 - 12000.00

Tare Weight:

About 6.5tons

发送消息联系供应商

通亚汽车制造有限公司

查看供应商

注册日期 2000 年 06 月 24 日

员工人数 600 + 人

工厂面积 400,000+ m²

年产量 16000 + 台

主营产品油罐半挂车、散装水泥罐半挂车、低平板半挂车、栏板半挂车、平板半挂车、骨架半挂车、自卸半挂车、帘布半挂车、环卫车辆

目标市场俄罗斯、东南亚、南美、非洲、中亚、南亚

产品详情

产品规格

1. Light weight, can increase the cargo loading capacity, improve the efficiency of transportation;

2. High space utilization rate, open skeleton structure, can be adapted to different sizes and specifications of the container, can make full use of space, to achieve efficient transportation;

3. High loading and unloading efficiency, which can greatly shorten the loading and unloading time of goods and improve the logistics efficiency.

Tare Weight

About 6.5tons

Outer side dimension (mm)

12450*2490*1400

Loading Capacity(Ton)

≦45T(40FT)

Axles

13T/PER, Tongya or FUWA or BPW brand

Tire

12.00R22.5 or 315/80R22.5 Triangle brand

Rim

9.00-22.5 China Brand

Suspension

Mechanical suspension

Spring leaf

90(W)mm*13(Thickness)mm 10 pcs leaf spring

Skeleton Semi Trailer

Main Beam

Height:500mm,upper plate is 14mm,middle plate is 8mm,down plate is 16mm;Material is Q345B Steel.

Brake chamber

WABCO relay valve

Twist Locks

12 units ISO twist locks

ABS

Optional

Light

LED light

Voltage

24V

Electrical

One unit of 27V 7-pin ISO 1185 socket

Tool box

One piece, 1m*0.5m*0.5m (Size can be choose freely)

Description

1. Light weight, can increase the cargo loading capacity, improve the efficiency of transportation;

2. High space utilization rate, open skeleton structure, can be adapted to different sizes and specifications of the container, can make full use of space, to achieve efficient transportation;

3. High loading and unloading efficiency, which can greatly shorten the loading and unloading time of goods and improve the logistics efficiency.
