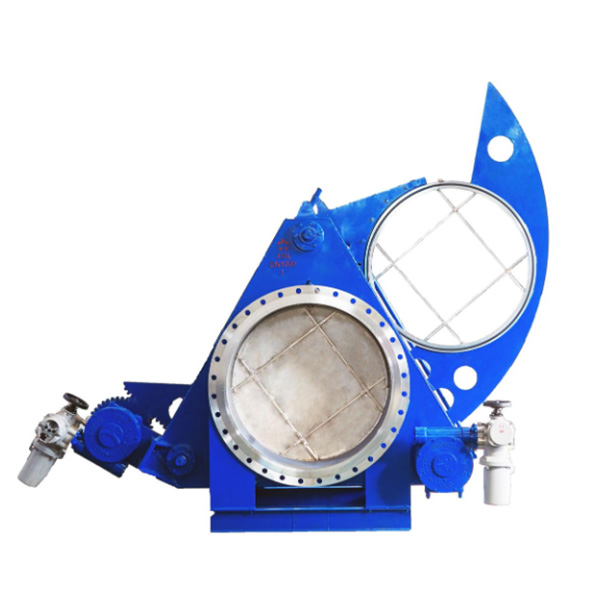

三点型快切盲板 | 通径 DN150‑DN1600 管道盲板，适用于大口径低压工况

Name: 三点型快切盲板 | 通径 DN150‑DN1600 管道盲板，适用于大口径低压工况
Brand: GLOBALMACHEX
SKU: DN150-DN1600
Availability: InStock
Rating: 5 (1 reviews)

三点型快切盲板适用于大口径低压管线的盲板抽堵作业，仅需一名工作人员操作电动执行机构松开阀体并旋转盲板到位，3-5 分钟内即可完成作业；可根据现场需求选配电动、气动或液动执行机构，替代人工更安全高效。适用于气体、液体等介质，符合 GB/T9119-2010 标准，广泛应用于炼油、化工、水泥等行业。

发送消息联系供应商

山东伟恒阀门科技有限公司

查看供应商

注册资本 1088 万元人民币

成立时间 2006-04-24

员工人数 60–100 人

地址山东省淄博市临淄区

经营范围阀门、管件、高压螺栓、过滤器、机械配件加工、销售，橡塑制品、机电设备、建筑材料销售。（依法须经批准的项目，经相关部门批准后方可开展经营活动）

月产能阀门及盲板 300–1000 台 / 套

产品详情

产品规格

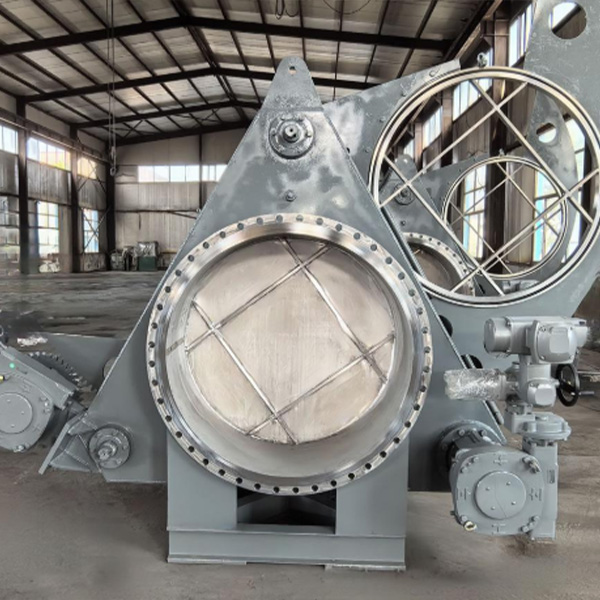

Product Overview

The three-point quick opening blind plate is a specialized pipeline fitting for large-bore low-pressure pipeline plugging operations. It features a three-point clamping structure and a quick-switch mechanism, enabling one operator to complete the blind plate insertion/removal within 3-5 minutes. With optional electric, pneumatic or hydraulic actuators, it offers enhanced safety and efficiency, making it ideal for frequent maintenance and isolation tasks in large-diameter process pipelines.

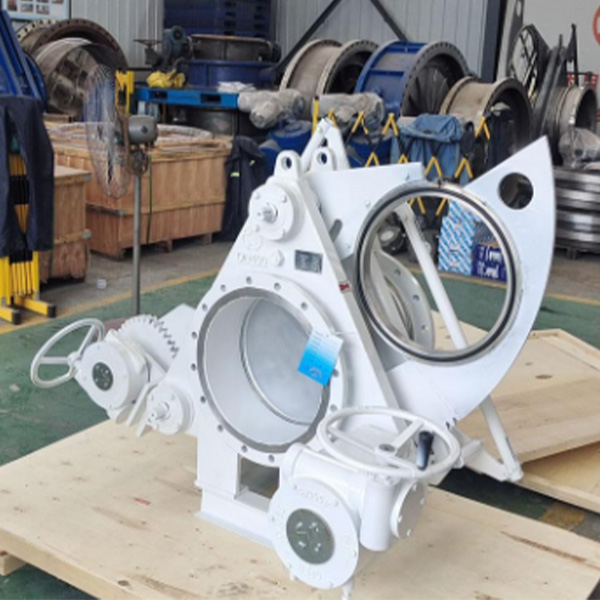

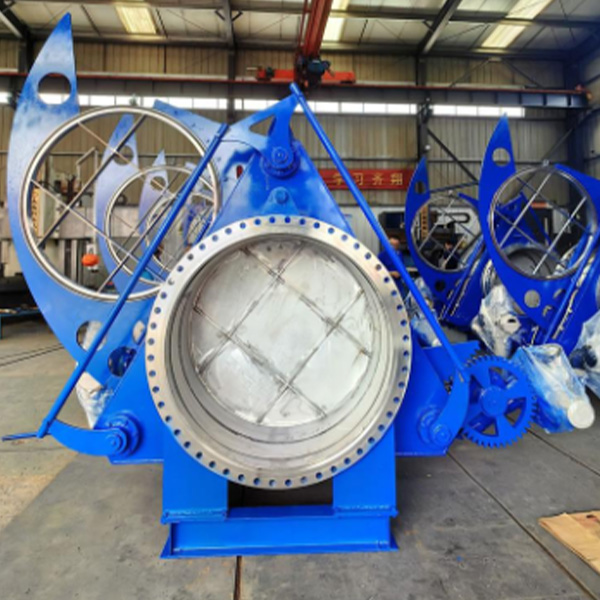

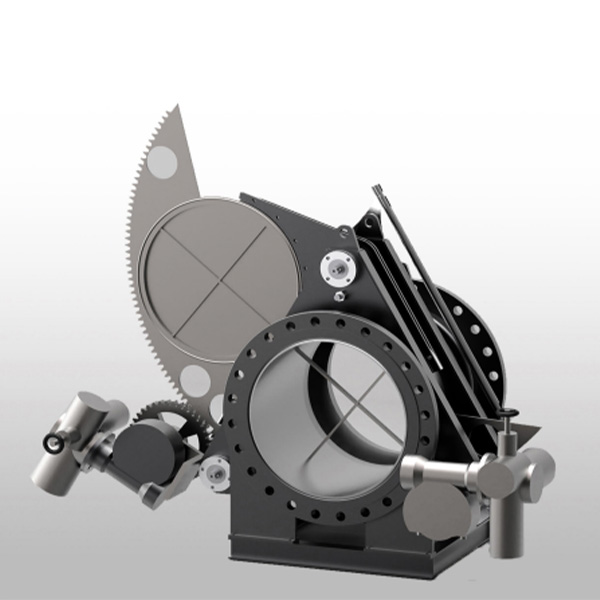

Core Structure & Components

Travel Plate Actuator: Drives the blind plate to slide in and out, realizing pipeline on-off.
Support Base: Provides stable support for the entire mechanism.
Clamp Release Actuator: Loosens the clamping force to allow blind plate rotation.
Movable/Fixed Blind Body: Forms the main sealing structure with the sliding blind plate.
Pulley & Linkage Mechanism: Guides the blind plate movement and transmits torque.
Screw Pair: Converts rotary motion to linear motion for precise position adjustment.

Key Advantages

Large Bore Adaptability: Covers DN150-DN1600, suitable for large-diameter low-pressure pipelines.
Quick Operation: Completes plugging in 3-5 minutes, significantly reducing downtime.
Multiple Drive Options: Supports manual, electric, pneumatic and hydraulic actuation to meet different site requirements.
Safe & Efficient: Replaces manual operation, reducing labor intensity and operational risks.
Reliable Sealing: Adopts high-performance sealing materials, ensuring zero leakage under design conditions.
Customizable: Supports custom sizes, materials and flange standards to meet project-specific needs.

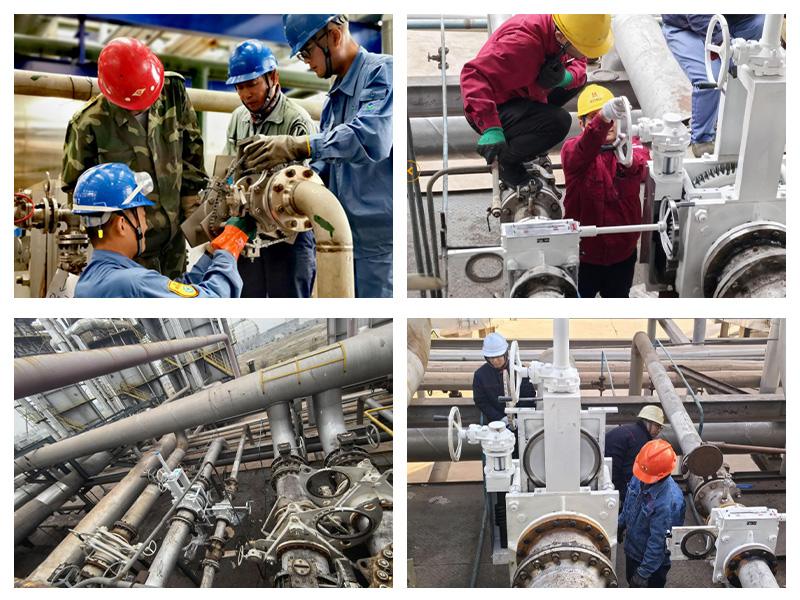

Application Industries

Refining Industry: Ethylene furnaces, coke removal lines, steam pipelines, separator isolation, flare gas lines, etc.
Chemical Industry: Reactor blowdown ports, chemical cleaning isolation devices, regenerated gas pipelines, transfer pipelines, mixed medium pipelines, etc.
Cement Industry: Finished product pipelines, oil depot tanks, petrochemical storage tanks, natural gas storage tanks, loading/unloading stations, etc.

Why Choose This Three-Point Quick Opening Blind Plate?

Efficient Maintenance: Minimizes large-diameter pipeline downtime and improves production efficiency.
Safe Operation: Multiple actuator options reduce manual operation risks in hazardous environments.
Large Bore Compatibility: Covers DN150-DN1600, meeting the needs of large-scale industrial pipelines.
Compliant: Meets national and international standards, ensuring compatibility and reliability.
Long Service Life: High-quality materials and robust three-point clamping design extend the product’s service life.

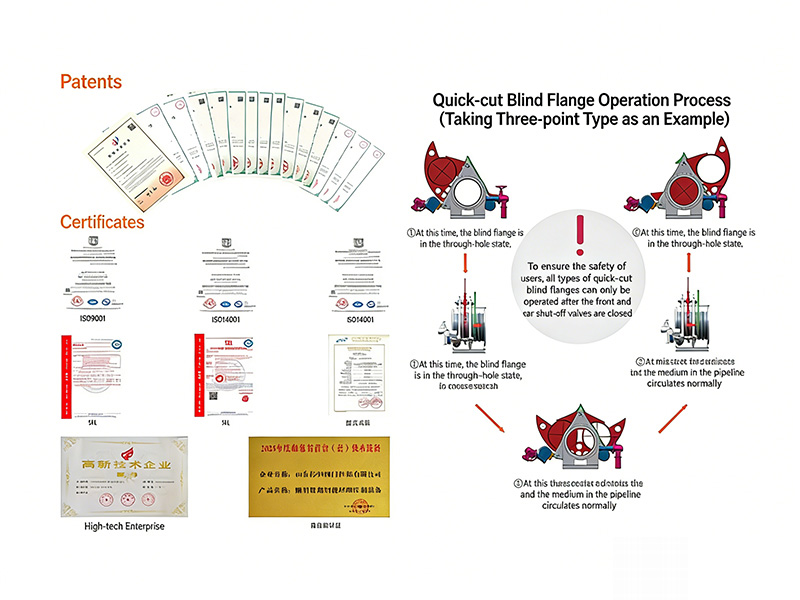

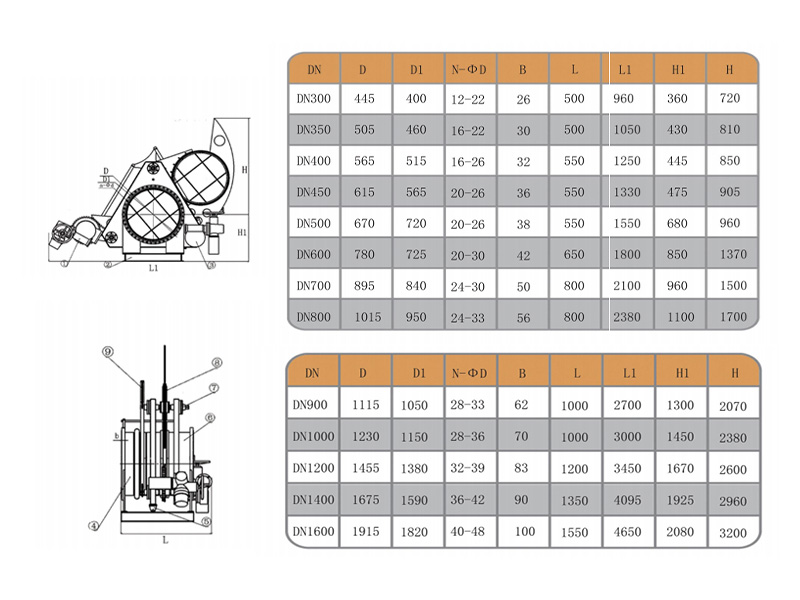

公称通径

DN150–DN1600

公称压力

PN1–PN2.5

设计温度

-20℃ ~ +245℃

适用介质

气体、液体等流体

阀体材质

碳钢、不锈钢、特殊材料（双相钢、钛合金等）

盲板材质

碳钢、不锈钢、特殊材料（双相钢、钛合金等）

密封材料

橡胶、硅橡胶、氟橡胶等

驱动方式

手动，电动，气动，液动

法兰标准

GB/T9119-2010 PN10
