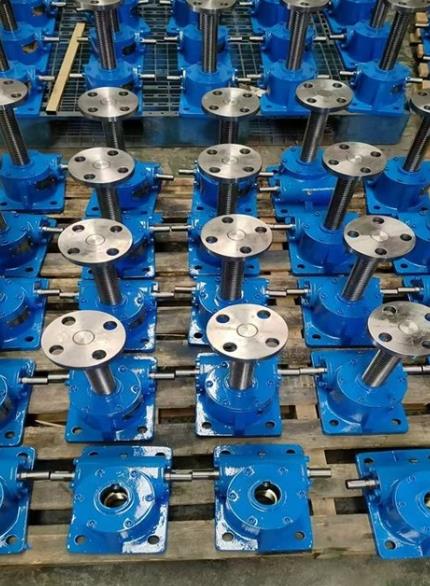

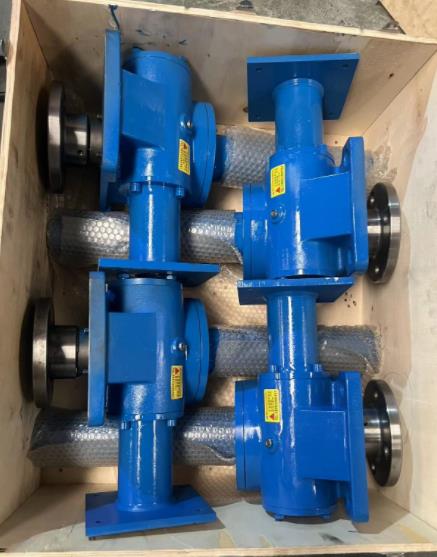

Vertical installation of screw lift, worm gear transmission, high-precision lifting equipment

The spiral screw elevator adopts a unique square shell design and is made of ductile iron, which greatly improves the strength and performance of the shell, and is widely used in high and low temperatures. Using a square tail cover design to control the screw not to rotate. There are different structural and assembly forms, and the height can be customized according to user requirements. It has many advantages such as easy installation, flexible use, multiple functions, multiple supporting forms, high reliability, and long service life. For more detailed information, please feel free to consult.
Product usage characteristics:
Thrust range: 0.5-30 tons;
The travel distance can reach 8m, and the stability of the screw and the guiding mechanism need to be considered;
30% work schedule, if the load rate is low, the work schedule can be appropriately increased;
The lifting speed is less than 1500mm/min (23mm/s), and can reach 46mm/s in special circumstances;
Efficiency less than 33%, with self-locking function, absolute self-locking for large reduction ratio L1;
Accurate positioning, with an additional anti backlash device that can achieve an accuracy of up to 0.05mm;
Absolute synchronization, the same motor can drive multiple spiral elevators simultaneously, mechanically synchronized;
We can provide double head screw, triple head screw, ball screw and screw elevators;
Can be equipped with encoders, limit switches, dust covers, safety nuts, reducers, ordinary motors, servo motors, stainless steel materials, etc.
Easy operation and maintenance, low noise.
