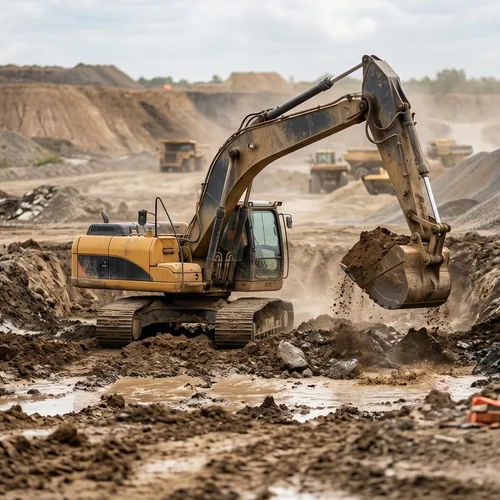

Designed for waterlogged environments where standard excavators fail, the Waterproof Digger (Model: WD-24) is a fully submersible, high-amphibious capability heavy machine. Operating at 24.5 tons and featuring a sealed, pressurized cab with IP67-rated electrical harnesses, this digger operates continuously in water depths up to 2.5 meters. The reinforced undercarriage and sealed slew bearing ensure zero contamination in mud, sludge, or brackish water, making it the definitive choice for river dredging, coastal defense, and peatland construction.
Absolute Waterproof Integrity: Unlike 'drainable' machines, the WD-24 features sealed axle housings, transmission breathers, and a positive-pressure cab system. All control modules and sensors meet IP67 rating, allowing full submersion for up to 72 hours without electronic failure.
Superior Supply Chain & Logistics: As a top-tier exporter, we deliver via global Ro/Ro or 40ft flat rack container shipping. We maintain a $2.5M genuine spare parts warehouse in Houston, Rotterdam, and Singapore, ensuring 98% parts availability within 48 hours for any wear components.
Unmatched ROI in Harsh Environments: Track maintenance costs on standard machines in swamps average $12,000/year. The WD-24 reduces undercarriage wear by 60% through sealed, grease-lubricated track chains and hardened steel grouser pads. Payback period typically under 18 months in continuous use.
The WD-24 is powered by a Cummins QSB4.5-C125 marine-grade diesel engine, equipped with a dual-stage fuel filtration and water-separating pre-filter. Cooling is handled by a hydraulically driven, reversible fan that self-clears debris. The hydraulic system utilizes a Rexroth closed-loop main pump with an integrated oil cooler and watertight aluminum heat exchanger. The boom and arm cylinders are hard-chrome plated with polyurethane wiper seals rated for saline conditions. The cab is pressurized to 0.5 kPa and includes an emergency fresh-air snorkel system, allowing operator safety in up to 1.8m of water.
Below is the primary data for the Waterproof Digger WD-24. All tests conducted under ISO 6015 standard.
Operates while partially or fully afloat using optional pontoons. Clears sediment, invasive vegetation, and debris without the need for dewatering. Reach of 8.2 meters allows bank-to-bank dredging in 15m wide canals.
Lays heavy pipeline sections across unstable muskeg and peat bogs using low ground pressure (28 kPa) and watertight final drives. Excavator can move laterally while submerged to set trench boxes.
Withstands tidal saltwater exposure. Used to place riprap, construct groynes, and clear mangrove blockages without corrosion damage to pins, bushings, or electrical systems.
A: From our central distribution hub in Shanghai, stock units ship within 7-10 working days. Ro/Ro transit to West Africa is 35-42 days; to Northern Europe 30-38 days; to US Gulf 40-50 days. Container shipping on request adds 5-7 days for disassembly. We provide daily satellite tracking of your vessel.
A: Yes. Every WD-24 ships with a mandatory initial consumables kit (part #WD-CK24) including: 4 sets of track pad bolts, 2 hydraulic pilot filters, 2 engine oil filters, 1 set of sealed bucket pins, and 3 meters of electrical heat shrink waterproofing tape. This kit is offered at 8% above our cost as a proactive fleet maintenance strategy.
A: The standard WD-24 uses a non-DPF Cummins QSB4.5 rated as Tier 3 / Stage IIIA, ideal for developing markets and unrestricted sites. For EU/US regulated projects, we offer the WD-24F variant with cooled EGR, DPF, and DEF system, fully certified to Tier 4 Final / Stage V. Please specify regional emission requirements when ordering.
A: Absolutely. For fleet buyers (3+ units), we include a 5-day, on-site training program at your facility conducted by our field service engineer. For individual units, we provide full, exploded-view parts catalogs, electrical diagnostic manual (including CANBUS architecture), and 24/7 remote technical support via Microsoft Teams. Factory schematics are NOT withheld.
A: Our Global Warranty (backed by a $50M insurer) operates on a 'Fix First, Verify Later' protocol for critical failures. You authorize local repair via any certified heavy equipment shop, submit the invoice and faulty part photos, and we reimburse within 14 business days. For major structural defects (frame, boom, slew ring), we air-ship a complete replacement component DDP to your nearest international airport at zero cost.
