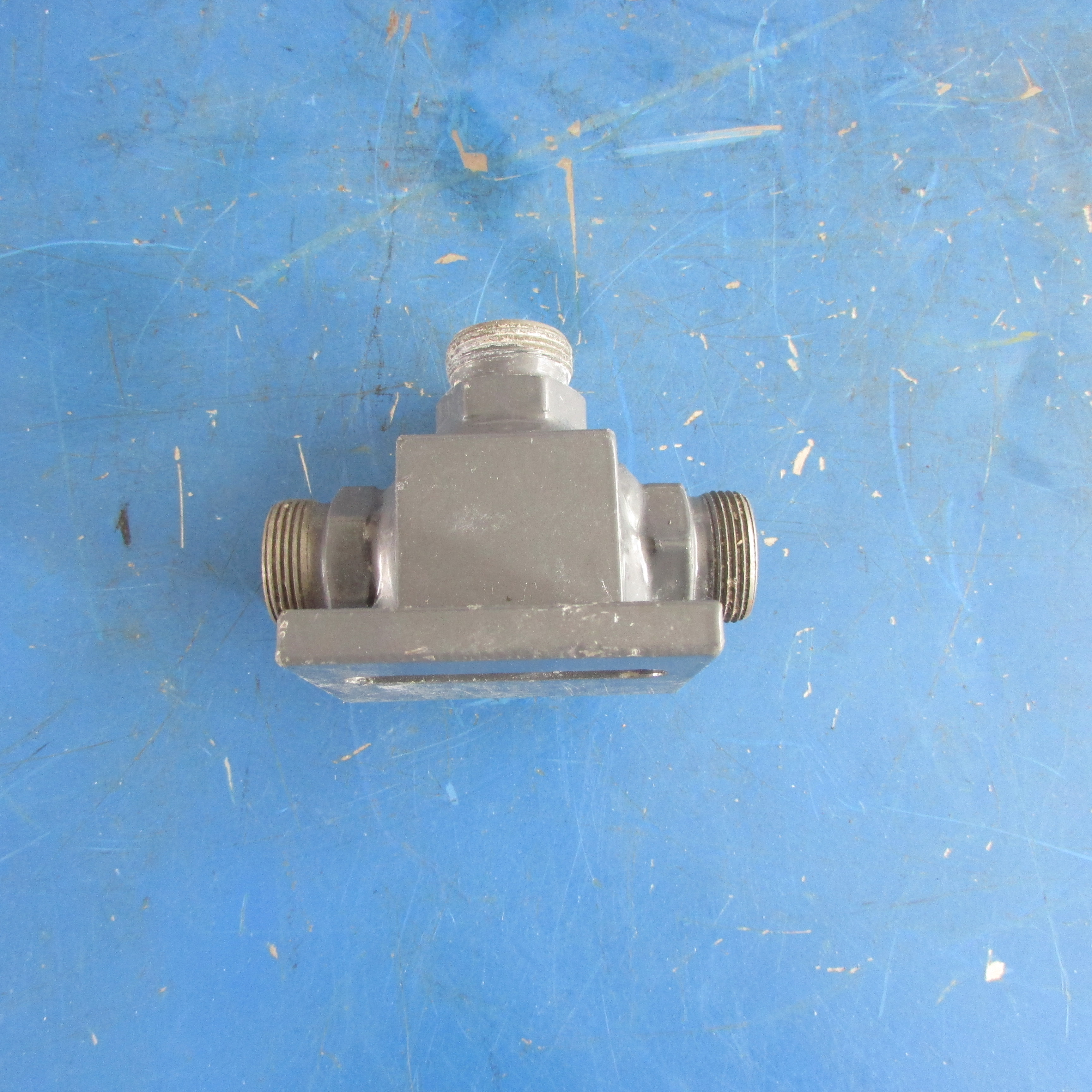

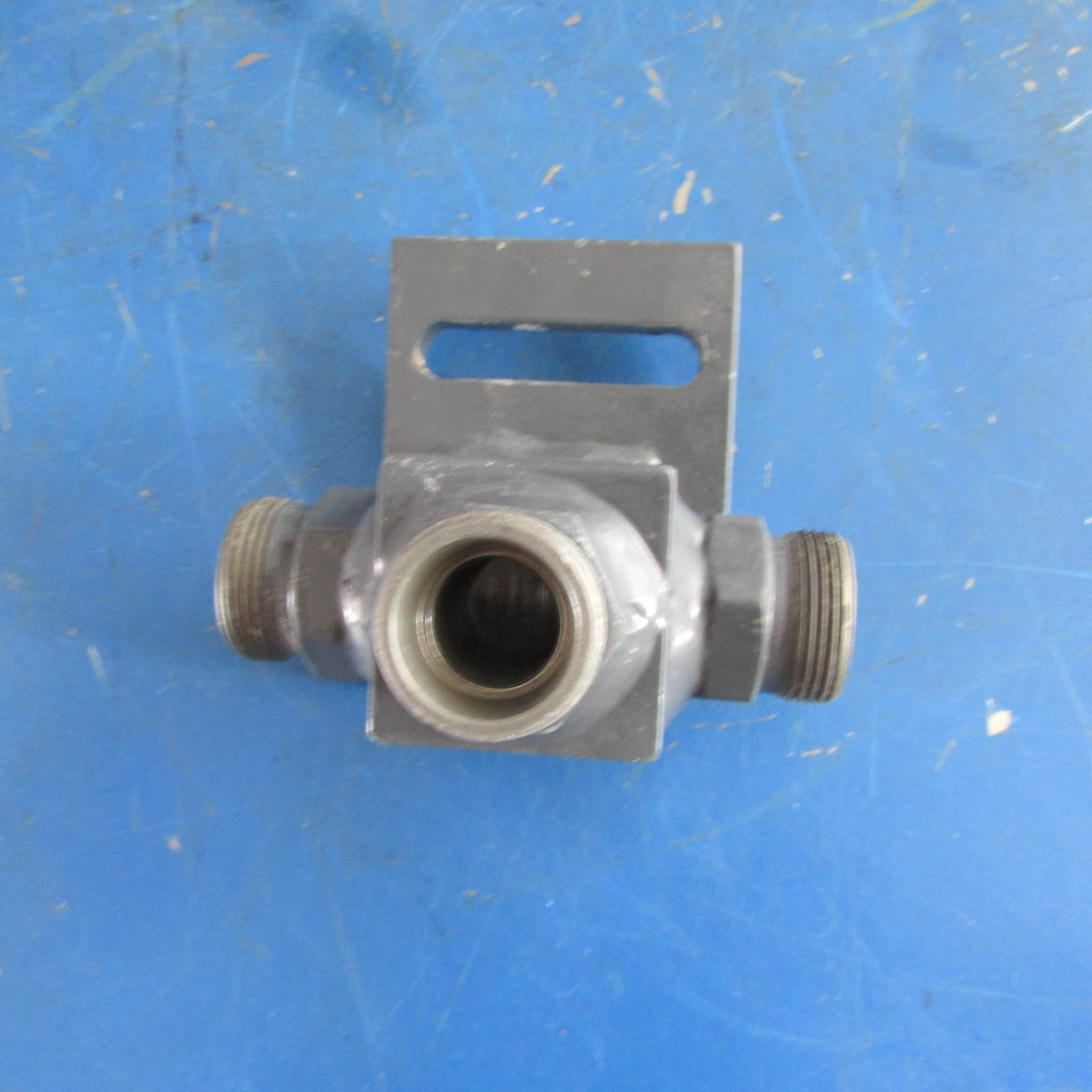

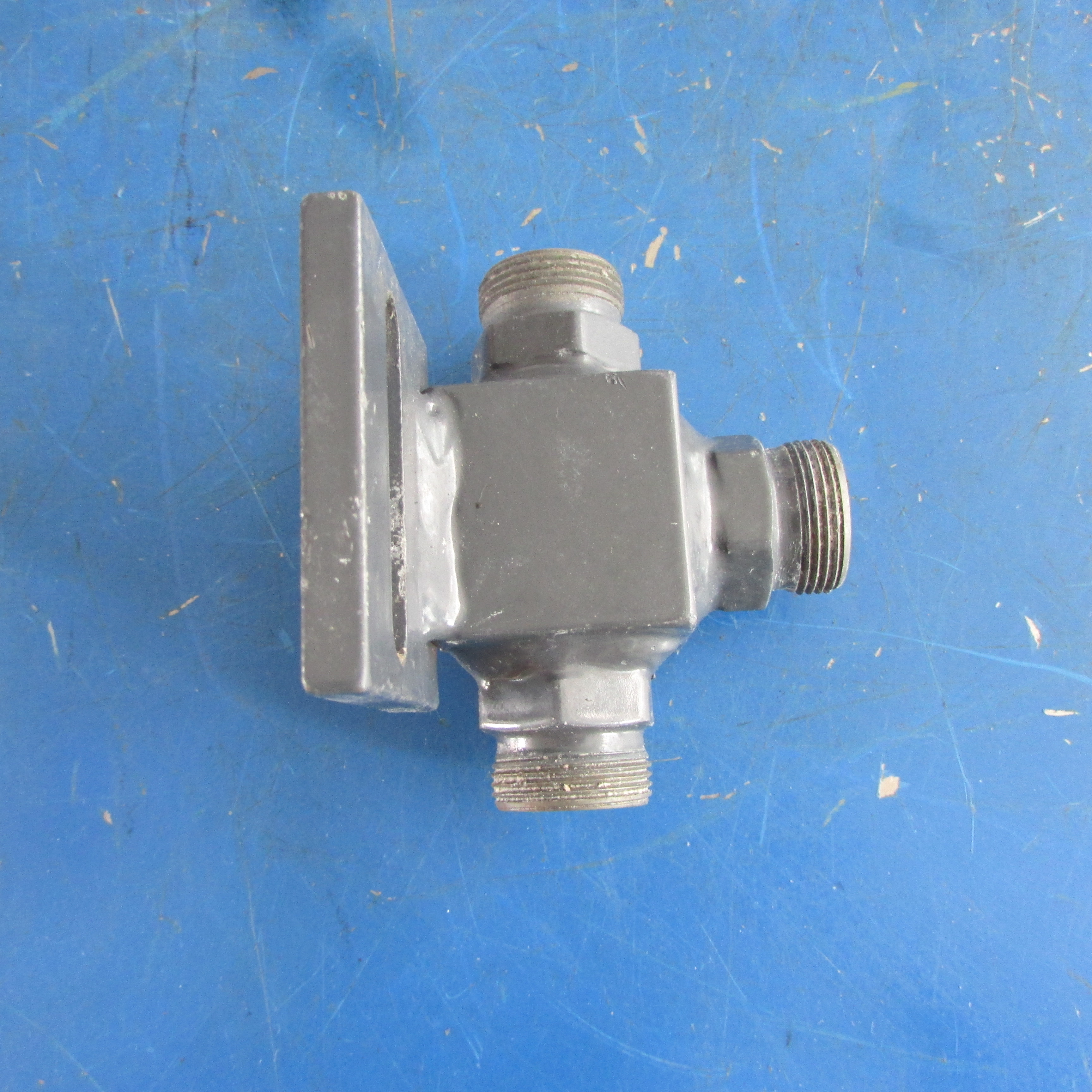

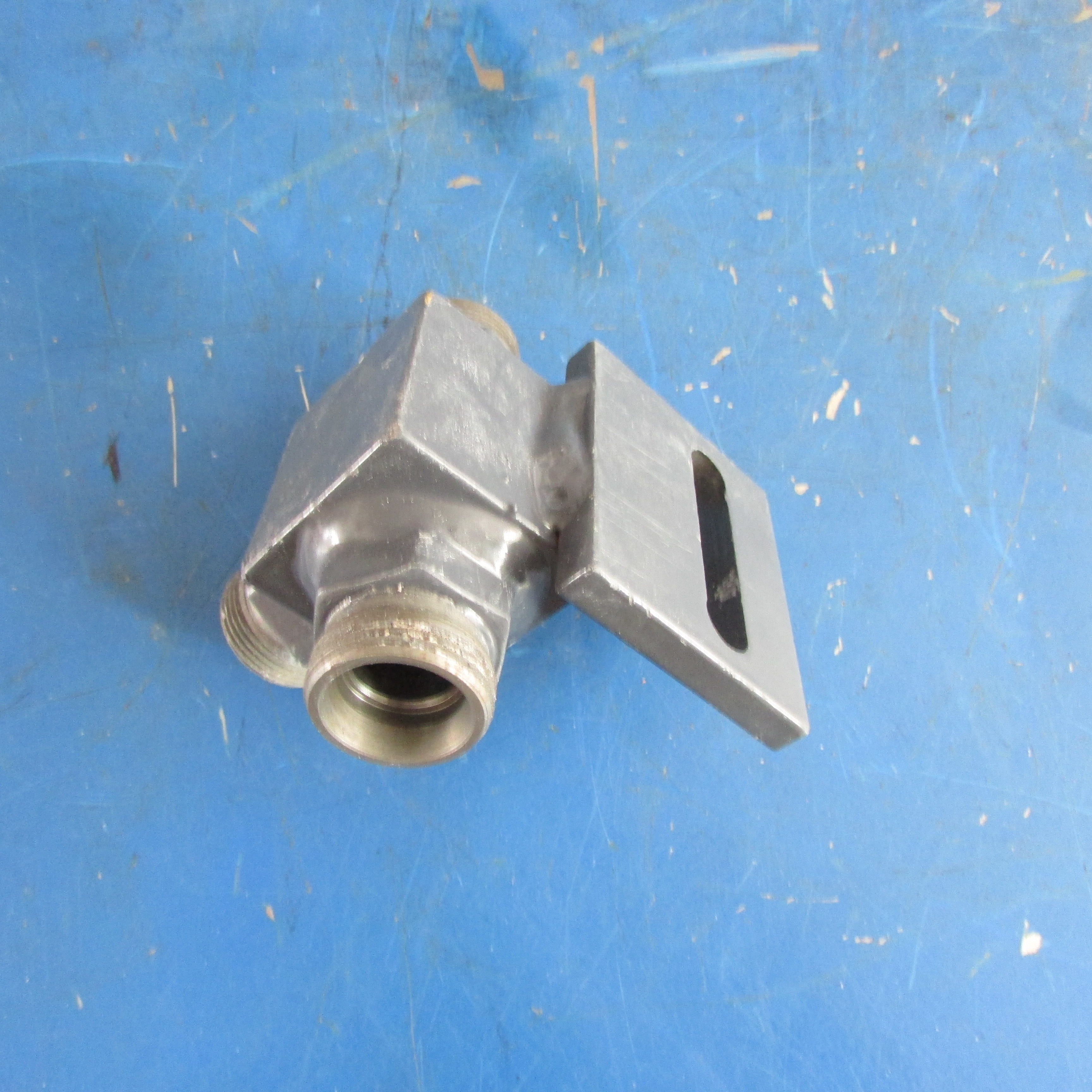

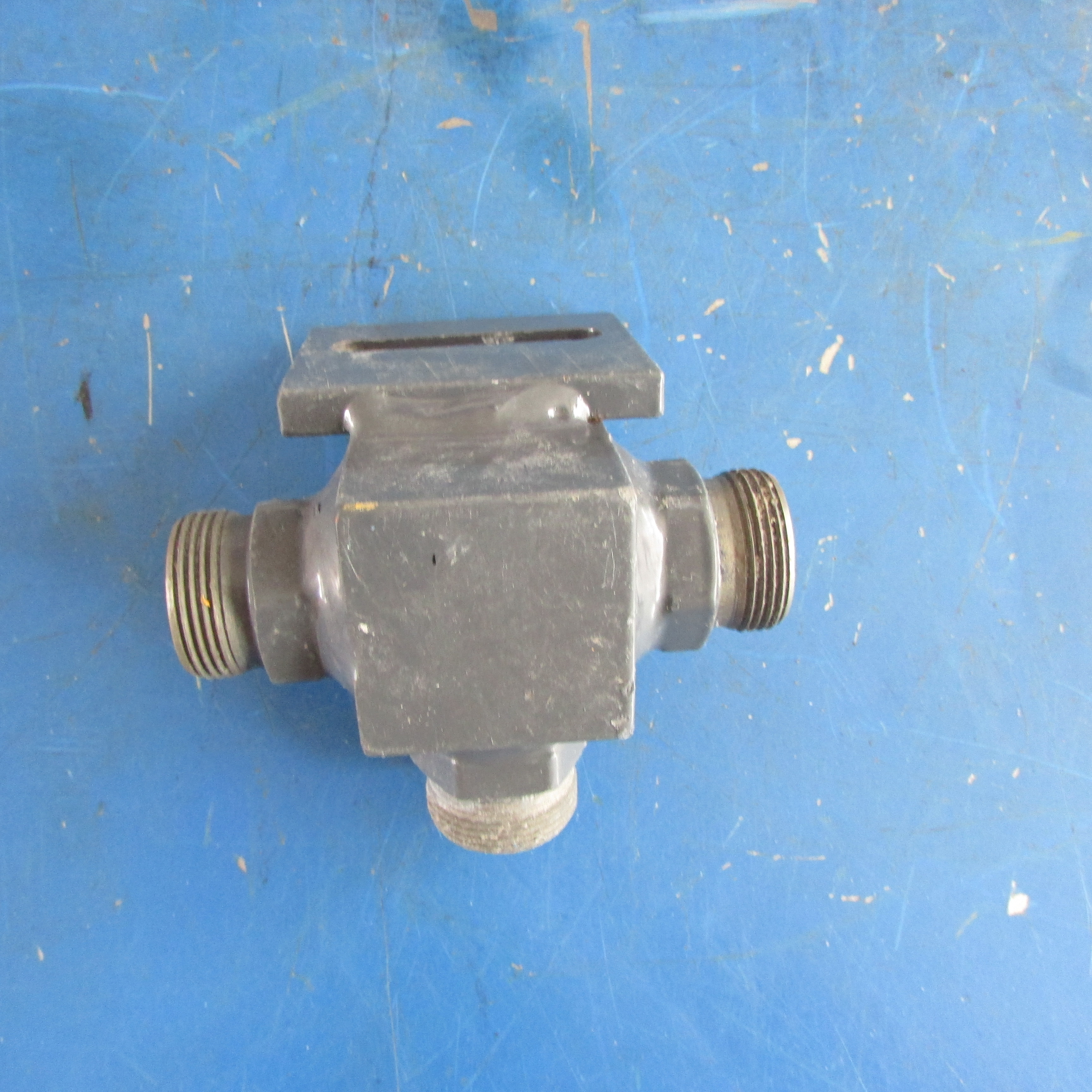

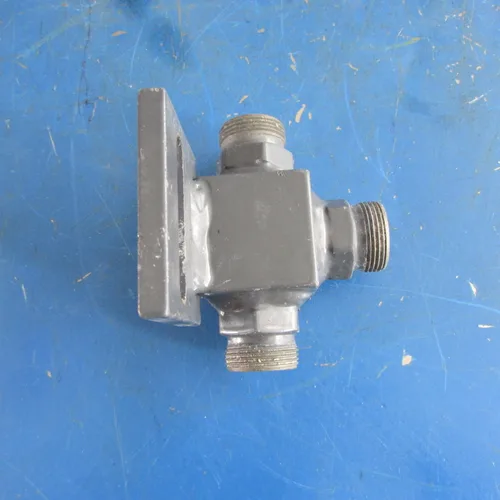

This XCMG Manifold Block 252101424 (Drawing No. ZJ5GVIII.7.5.7A) is a dual-coded component where the numeric P/N and structural drawing No. cross-verify each other for easy procurement check and after-sales traceability. The body is built from precision-cast blank with CNC-machined flow channels; sealing faces and all three port threads (typically G or M series per XCMG original drawing) are individually gauged and pressure-tested to ensure zero leakage and no thread galling under high pressure. As a split/merge node in the hydraulic circuit, its internal passages are deburred and cleaned to reduce particle retention and downstream pump/valve wear. Assembly dimensions follow the OEM drawing exactly for drop-in installation with no piping modification, suitable for various XCMG host machine hydraulic loops. Available by batch with bulk inquiry welcome.
Material Description:
ZJ5GVIII.7.5.7A Three way Block Component
