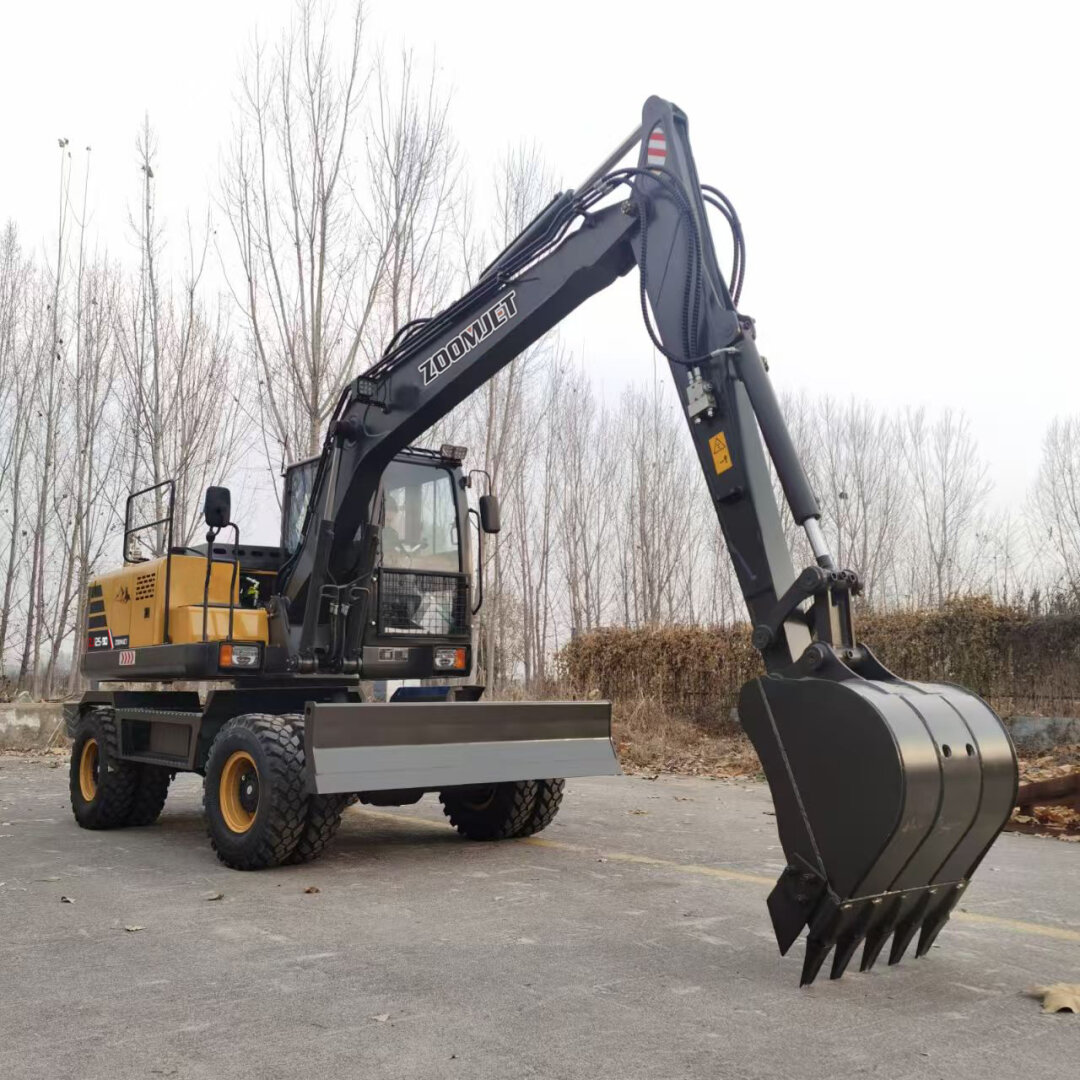

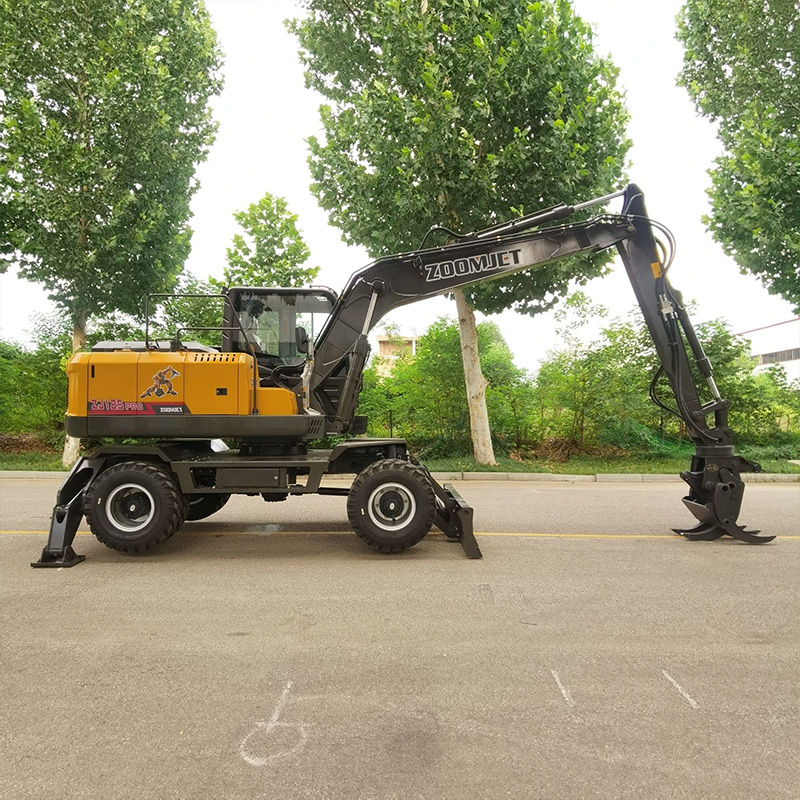

ZJ125W - 12 Ton Wheeled Excavator

Name: ZJ125W - 12 Ton Wheeled Excavator
Brand: GLOBALMACHEX
Availability: InStock
Rating: 5 (1 reviews)

ZJ125W Multi-functional Wheeled Excavator

1. Mobility: The wheeled chassis design allows the ZJ125W to travel quickly on roads, eliminating the need for trailers and enabling rapid movement between different construction sites, thus improving work efficiency.

2. Multi-functionality: It can be equipped with various attachments, such as buckets, grapples, and breakers, allowing one machine to perform multiple tasks including excavation, loading, demolition, and breaking, broadening its applicability.

3. Wide range of applications: Suitable for municipal construction, road engineering, pipeline construction, landscaping projects, and other fields, especially on paved roads or in situations requiring frequent movement, making it more suitable than tracked excavators.

$30000.00 - 60000.00

发送消息联系供应商

山东中崛重工有限公司

查看供应商

成立时间 2015年

占地面积 20000m²

外贸年限 10 年

主要出口中亚、俄罗斯、东南亚、非洲、欧洲、美洲

出口国家 100 多个国家

年销售额 10 亿元人民币以上

主营产品全液压轮式挖掘机、中小型履带式挖掘机、滑移装载机、数控钢筋加工设备、清淤拆除机器人、挖掘机定制改装

应用领域园林绿化、农业生产、市政工程、水利建设、民用建筑

企业认证 ISO9001、ISO14001、欧盟 CE 认证

产品详情

产品规格

Item	Parameter	Item	Parameter
Model	ZJ125W	Max. Digging Reach	7500 mm
Operating Weight	9700 kg	Max. Ground-Level Digging Reach	7318 mm
Bucket Capacity	0.31 m³	Max. Digging Depth	3652 mm

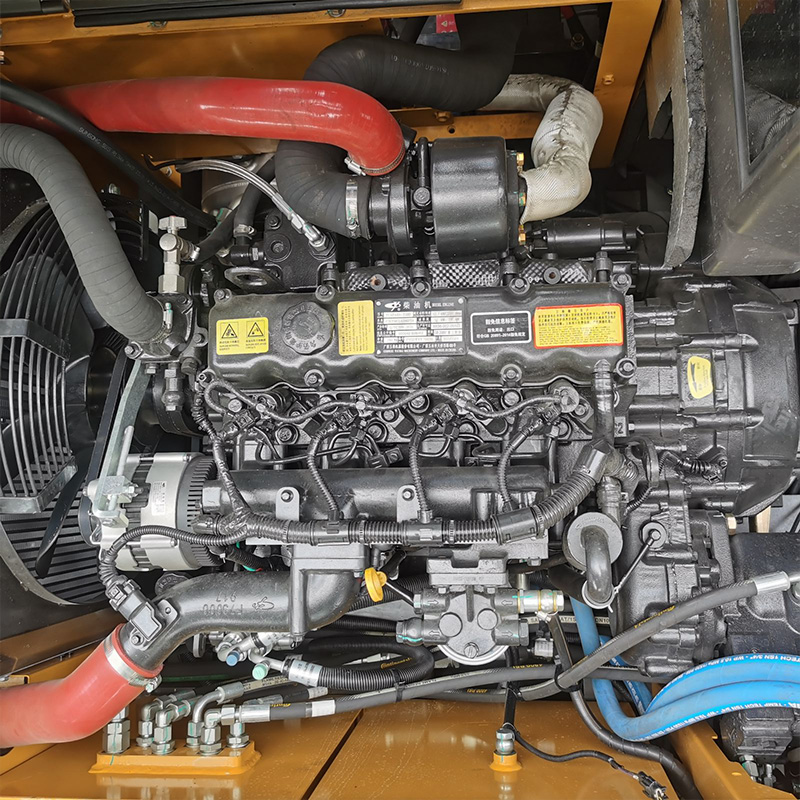

Engine Model	Yuchai YC4FA85	Max. Vertical Digging Depth	3200 mm
Power	62.5 kW / 2200 rpm	Min. Swing Radius	2431 mm
Fuel Tank Capacity	147 L	Tail Swing Radius	2212 mm
Travel Speed	30 km/h	Max. Height at Min. Swing Radius	5866 mm
Swing Speed	12 r/min	Counterweight Ground Clearance	1094 mm
Gradeability	38°	Min. Ground Clearance	283 mm
Bucket Digging Force	39 kN	Wheelbase	2500 mm
Arm Digging Force	30 kN	Tire Width	510 mm
Hydraulic Pump Model	Load Sensing Variable Piston Pump (Electronic Control)	Arm Length	2200 mm
Max. Flow Rate	209 L/min	Boom Length	4000 mm
Working Pressure	24 MPa	Max. Attachment Dumping Height	6240 mm
Hydraulic Tank Capacity	140 L	Max. Attachment Lifting Capacity	1000 kg
Transport Length	7153 mm	Max. Attachment Opening Size	1300 mm
Transport Height	2940 mm	Min. Attachment Opening Size	102 mm
Transport Width	2200 mm	Max. Attachment Lifting Height	8127 mm
Max. Digging Height	7931 mm	Max. Attachment Grabbing Height	7927 mm
Max. Dumping Height	5903 mm

Model

ZJ125W

Engine

Yuchai YC4FA85

Power

62.5 kW / 2200 rpm

Weight

9700 kg

Description

Item	Parameter	Item	Parameter
Model	ZJ125W	Max. Digging Reach	7500 mm
Operating Weight	9700 kg	Max. Ground-Level Digging Reach	7318 mm
Bucket Capacity	0.31 m³	Max. Digging Depth	3652 mm
Engine Model	Yuchai YC4FA85	Max. Vertical Digging Depth	3200 mm
Power	62.5 kW / 2200 rpm	Min. Swing Radius	2431 mm
Fuel Tank Capacity	147 L	Tail Swing Radius	2212 mm
Travel Speed	30 km/h	Max. Height at Min. Swing Radius	5866 mm
Swing Speed	12 r/min	Counterweight Ground Clearance	1094 mm
Gradeability	38°	Min. Ground Clearance	283 mm
Bucket Digging Force	39 kN	Wheelbase	2500 mm
Arm Digging Force	30 kN	Tire Width	510 mm
Hydraulic Pump Model	Load Sensing Variable Piston Pump (Electronic Control)	Arm Length	2200 mm
Max. Flow Rate	209 L/min	Boom Length	4000 mm
Working Pressure	24 MPa	Max. Attachment Dumping Height	6240 mm
Hydraulic Tank Capacity	140 L	Max. Attachment Lifting Capacity	1000 kg
Transport Length	7153 mm	Max. Attachment Opening Size	1300 mm
Transport Height	2940 mm	Min. Attachment Opening Size	102 mm
Transport Width	2200 mm	Max. Attachment Lifting Height	8127 mm
Max. Digging Height	7931 mm	Max. Attachment Grabbing Height	7927 mm
Max. Dumping Height	5903 mm

Contact Supplier
