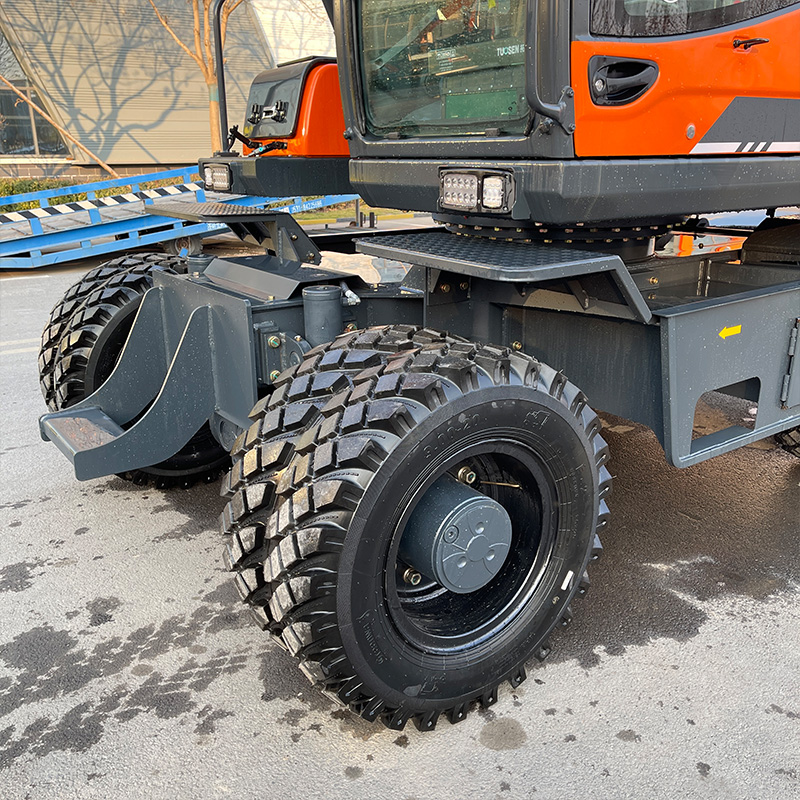

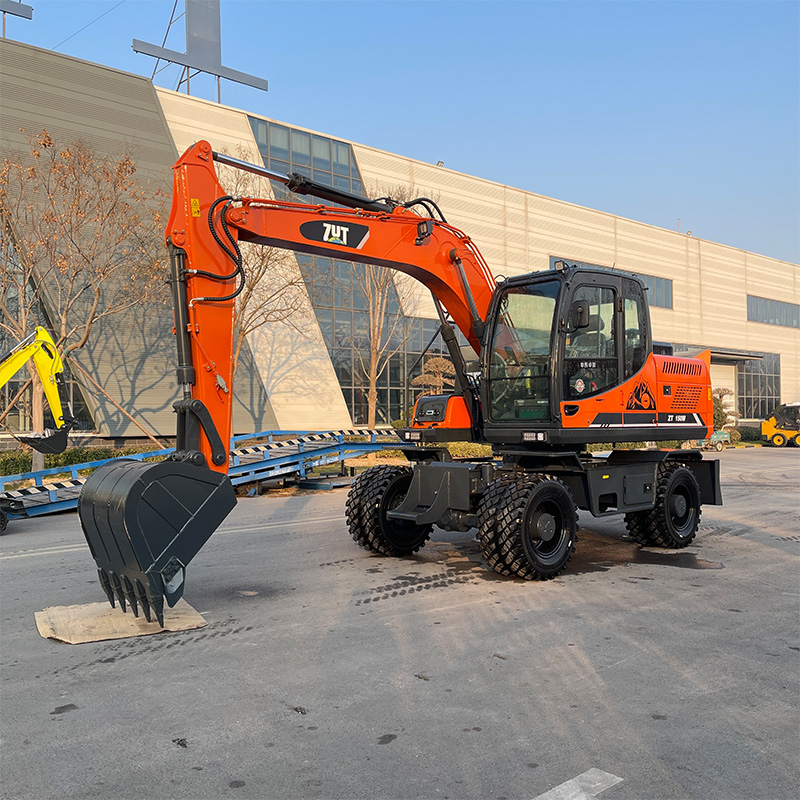

ZT150 - 15 Ton Wheeled Excavator

Name: ZT150 - 15 Ton Wheeled Excavator
Brand: GLOBALMACHEX
Availability: InStock
Rating: 5 (1 reviews)

ZT150 Multi-functional Wheeled Excavator

1. Mobility: The wheeled chassis design allows the ZT150 to travel quickly on roads, eliminating the need for trailers and enabling rapid movement between different construction sites, thus improving work efficiency.

2. Multi-functionality: It can be equipped with various attachments, such as buckets, grapples, and breakers, allowing one machine to perform multiple tasks including excavation, loading, demolition, and breaking, broadening its applicability.

3. Wide range of applications: Suitable for municipal construction, road engineering, pipeline construction, landscaping projects, and other fields, especially on paved roads or in situations requiring frequent movement, making it more suitable than tracked excavators.

$60000.00 - 120000.00

发送消息联系供应商

山东中崛重工有限公司

查看供应商

成立时间 2015年

占地面积 20000m²

外贸年限 10 年

主要出口中亚、俄罗斯、东南亚、非洲、欧洲、美洲

出口国家 100 多个国家

年销售额 10 亿元人民币以上

主营产品全液压轮式挖掘机、中小型履带式挖掘机、滑移装载机、数控钢筋加工设备、清淤拆除机器人、挖掘机定制改装

应用领域园林绿化、农业生产、市政工程、水利建设、民用建筑

企业认证 ISO9001、ISO14001、欧盟 CE 认证

产品详情

产品规格

Specifications
Total weight(kg)	12800
Volume of Bucket(m³)	0.5
Configuration

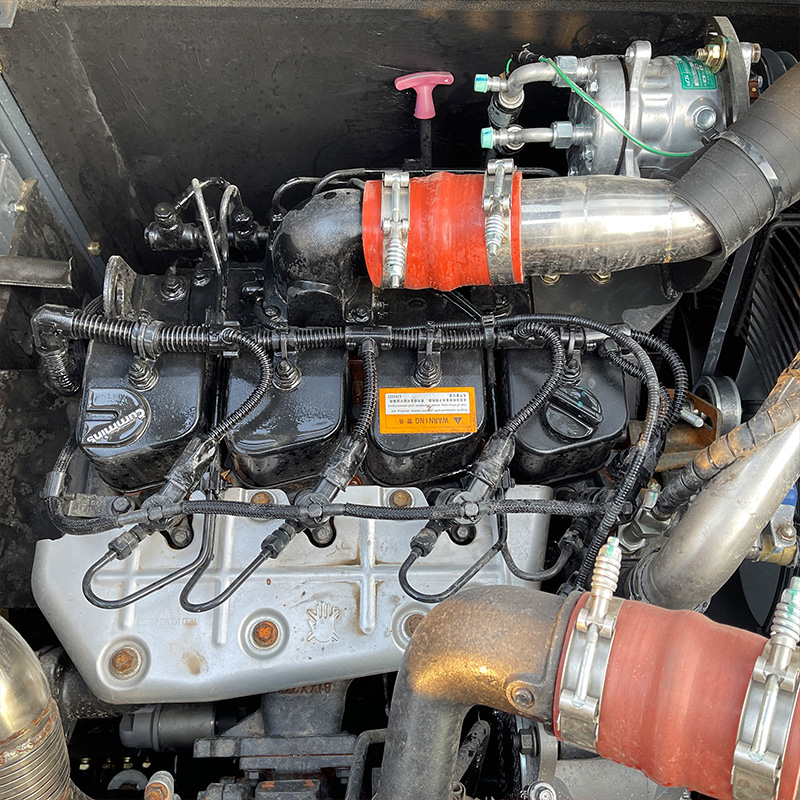

Engine	Brand	Cummins
	Model	B3.9CS4 130C(four-cylinder)
	Power(KW)	96
	Displacement(mL)	3900
	Rotational speed	2500

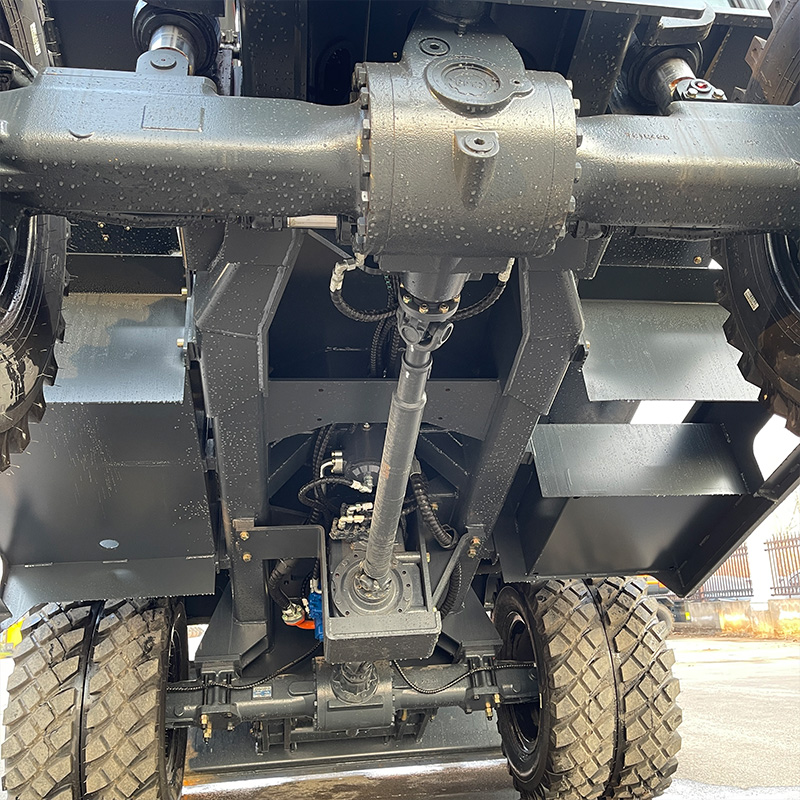

Drive axle	Fully hydraulic wet brake axle
Gearbox	Continuously variable transmission

Performance
Swing speed(rpm)	12.5
Travel speed(km/hr)	35-10
Gradeability(°)	30
Drive unit and brake

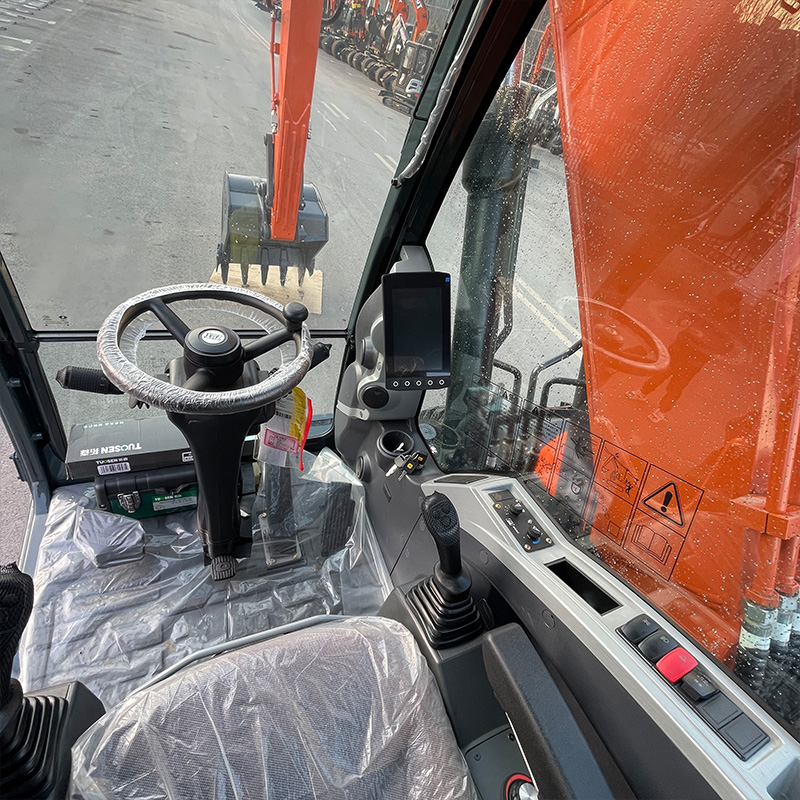

Steering control	Steering wheel
Drive type	Hydraulics

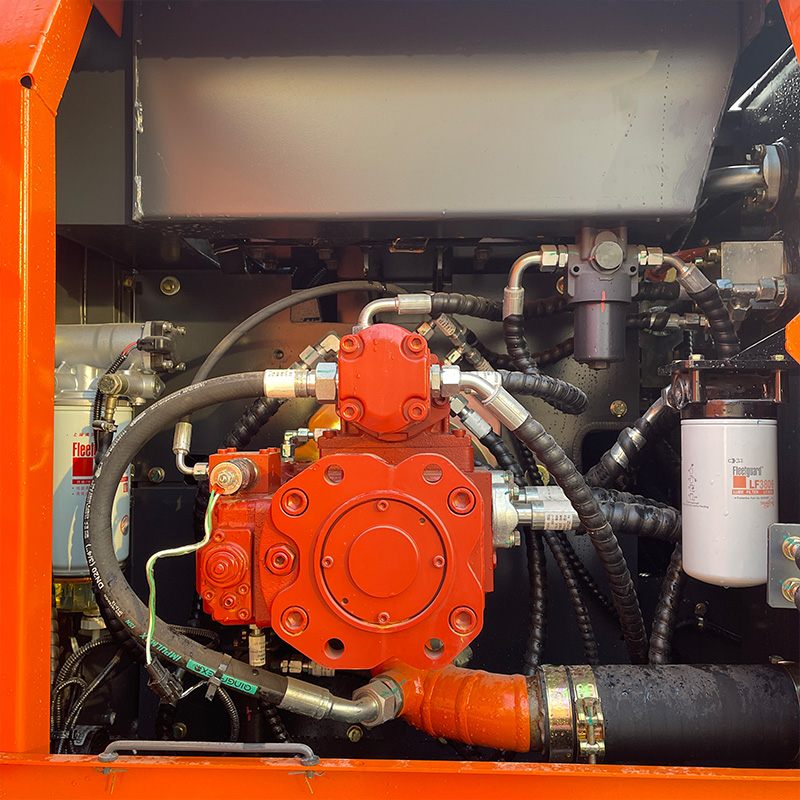

Travel motor type	Axial piston hydraulic motor
Service brake	Hydraulic braking
Parking brake	Wet multi-disc braking
Tank capacity
Fuel tank(L)	210
Hydraulic oil tank(L)	130
Max digging force(ISO)
Bucket(kN)	62.5
Stick(kN)	85
Operating range(mm)
Transport Length	7232
Transport Width	2500
Transport Height	3428
Turning Radius	2278
Wheelbase	2650
Wheel Track	1942
Max Digging Radius	7722
Max Digging Depth	4600
Max Digging Height	8334
Max Unloading Height	6190
Turntable Ground Clearance	1274

Model

ZT150W

Engine

B3.9CS4 130C(four-cylinder)

Weight

12800kg

Description

Specifications
Total weight(kg)	12800
Volume of Bucket(m³)	0.5
Configuration
Engine	Brand	Cummins
	Model	B3.9CS4 130C(four-cylinder)
	Power(KW)	96
	Displacement(mL)	3900
	Rotational speed	2500
Drive axle	Fully hydraulic wet brake axle
Gearbox	Continuously variable transmission

Performance
Swing speed(rpm)	12.5
Travel speed(km/hr)	35-10
Gradeability(°)	30
Drive unit and brake
Steering control	Steering wheel
Drive type	Hydraulics
Travel motor type	Axial piston hydraulic motor
Service brake	Hydraulic braking
Parking brake	Wet multi-disc braking
Tank capacity
Fuel tank(L)	210
Hydraulic oil tank(L)	130
Max digging force(ISO)
Bucket(kN)	62.5
Stick(kN)	85
Operating range(mm)
Transport Length	7232
Transport Width	2500
Transport Height	3428
Turning Radius	2278
Wheelbase	2650
Wheel Track	1942
Max Digging Radius	7722
Max Digging Depth	4600
Max Digging Height	8334
Max Unloading Height	6190
Turntable Ground Clearance	1274
